  5. Industrial Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

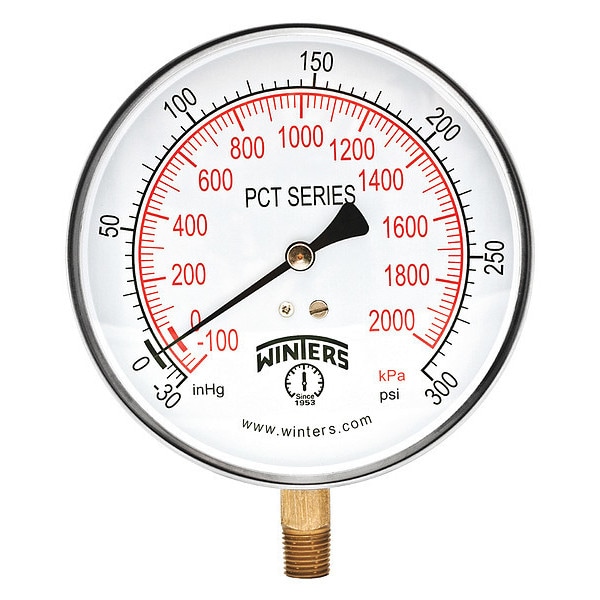

Winters Industrial Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PCT334 - main

Industrial Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PCT334

  • Zoro # G1604344

product price:  $17.69
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PCT334
Zoro #
G1604344
UPC #
628311251067
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Depth
1.18 in
Manufacturer Warranty Length
5 yr
Case Diameter
4.92 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
304 Stainless Steel
Series
PCT
Lens Material
Acrylic
Primary Pressure Range
30 to 0 to 300
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Standards
ASME, CRN
Gauge Primary Range Smallest Graduation
15/10/100
Case Color
Metallic
For Use With
Media Compatible with Bronze
Socket Material
Brass
Smallest Graduation
7.5 in Hg/5 psi/20 kPa
Gauge Special Options
Zero Adjustment Screw
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
30/50/200
Gauge Secondary Range Values
0 to 70,000
Case Material
304 Stainless Steel
Connection Type
MNPT
Over-Pressure Limit
25%
Pressure Gauge Type
Industrial Pressure Gauge
Includes Calibration Certificate
No
Sensor Material
Phosphor Bronze
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Pointer Color
Black
Process Temperature Range
-40 Degrees to 200 Degrees F
Pressure Range Type
Compound
Cleaned for Oxygen Service
No
Vibration Resistance
None
Case Construction
Welded Joint
Movement Material
Brass
Dry Dampening Feature
None
Scale Type
Single
Dial Color
White
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Includes Mounting Hardware
No
Process Connection Gender
Male
Gauge Case Liquid
None
Dial Face Material
Aluminum
Includes Vent Plug
No
Sensor Type
Bourdon Tube
Non-Sparking
No
Removable Bezel
No
Field Fillable
No
Bezel Material
304 Stainless Steel
Pointer Material
Aluminum
Compatible Process Media
Air, Steam, Water
Accuracy Grade
ASME B40.100 Grade 1A
Secondary Scale Units
gpm
Operating Temperature Range
-40 Degrees to 200 Degrees F
Case Liquid
None
Compatible with Brand
Universal
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
IP Rating
IP52
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Maximum
300 psi
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,000 kPa

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
