  5. Industrial Pressure Gauge, 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

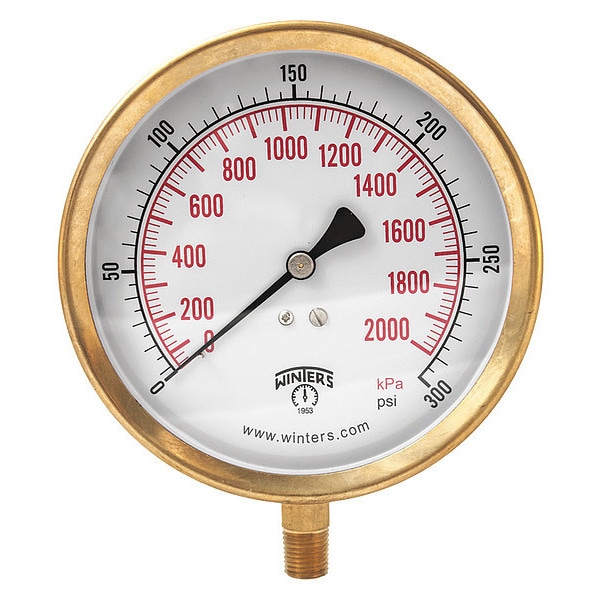

Winters Industrial Pressure Gauge, 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P1S426 - main

Industrial Pressure Gauge, 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P1S426

  • Zoro # G1604554

product price:  $38.79
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P1S426
Zoro #
G1604554
UPC #
628311255577
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Diameter
5.076 in
Case Depth
1.275 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial, Refrigeration, HVAC/R, Plumbing
Gauge Case Material
Aluminum
Series
P1S 100
Lens Material
Glass
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Media Compatible with Bronze
Gauge Primary Range Smallest Graduation
10/100
Connection Type
MNPT
Case Color
Black
Gauge Primary Range Numbered Graduations
50/200
Gauge Secondary Range Values
0 to 2100
Gauge Special Options
Heavy Duty
Case Material
Aluminum
Smallest Graduation
5 psi/20 kPa
Socket Material
Brass
Calibration Certificate Included
No
Standards
ANSI/ASME, CRN
Non-Sparking
No
Process Connection Gender
Male
Field Fillable
No
Dial Face Material
Aluminum
Includes Vent Plug
No
Accuracy Grade
ASME B40.100 Grade 1A
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Case Finish
Polished
Includes Mounting Hardware
No
Dry Dampening Feature
None
Pointer Material
Aluminum
Includes Calibration Certificate
No
Sensor Material
Phosphor Bronze
Accuracy Scale
Full Scale
Dial Color
White
Vibration Resistance
None
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Construction
Welded Joint
Gauge Case Liquid
None
Secondary Scale Units
kPa
Pressure Gauge Type
Industrial Pressure Gauge
Movement Material
Brass
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Over-Pressure Limit
25% of Full Scale
Scale Type
Dual
Removable Bezel
No
Pointer Color
Black
Secondary Pressure Range
0 to 2,100
Sensor Type
Bourdon Tube
Bezel Material
Brass
Freeze Resistant Movement
No
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
IP Rating
IP52
Operating Temperature - Maximum
200 Degrees F
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Minimum
0 kPa
Compatible with Brand
Universal
Process Media Temperature - Minimum
-40 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
