  5. Industrial Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

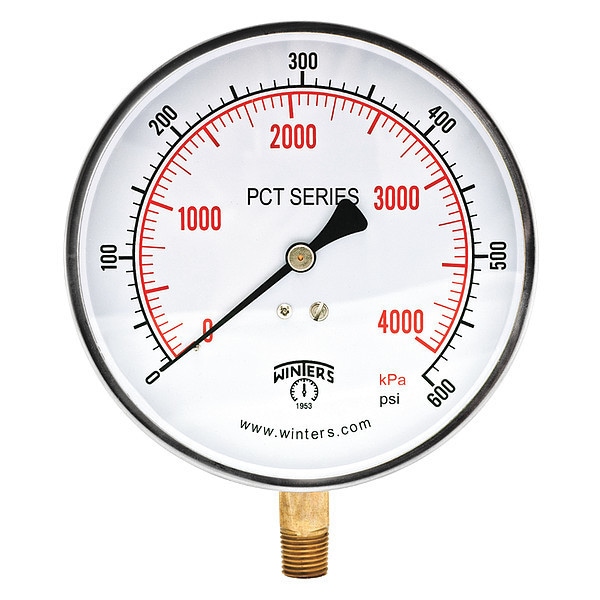

Winters Industrial Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PCT331 - main

Industrial Pressure Gauge, 0 to 600 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PCT331

  • Zoro # G1937264

product price:  $22.99
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PCT331
Zoro #
G1937264
UPC #
628311251159
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 1/2 in
Case Depth
1.18 in
Case Diameter
4.92 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
304 Stainless Steel
Series
PCT
Lens Material
Acrylic
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
50/100
Smallest Graduation
5 psi/50 kPa
Gauge Secondary Range Values
0 to 4140
Gauge Special Options
Zero Adjustment Screw
Gauge Primary Range Numbered Graduations
100/500
For Use With
Media Compatible with Bronze
Case Color
Metallic
Calibration Certificate Included
No
Case Material
304 Stainless Steel
Socket Material
Brass
Standards
ASME, CRN
Connection Type
MNPT
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Gauge Case Liquid
None
Pointer Material
Aluminum
Non-Sparking
No
Includes Calibration Certificate
No
Pressure Gauge Type
Industrial Pressure Gauge
Removable Bezel
No
Field Fillable
No
Sensor Type
Bourdon Tube
Process Connection Gender
Male
Pointer Color
Black
Secondary Scale Units
kPa
Over-Pressure Limit
25%
Accuracy Scale
Full Scale
Accuracy Grade
ASME B40.100 Grade 1A
Case Construction
Welded Joint
Dial Face Material
Aluminum
Bezel Material
304 Stainless Steel
Secondary Pressure Range
0 to 4140
Dry Dampening Feature
None
Sensor Material
Phosphor Bronze
Includes Vent Plug
No
Scale Type
Dual
Includes Mounting Hardware
No
Dial Color
White
Movement Material
Brass
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Vibration Resistance
None
Compatible Process Media
Air, Steam, Water
Process Temperature Range
-40 Degrees to 200 Degrees F
Cleaned for Oxygen Service
No
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
600 psi
IP Rating
IP52
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
4,140 kPa
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
5
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
None
Operating Temperature - Maximum
200 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP52, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
