  5. Lead-Free Pressure Gauge, 0 to 100 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

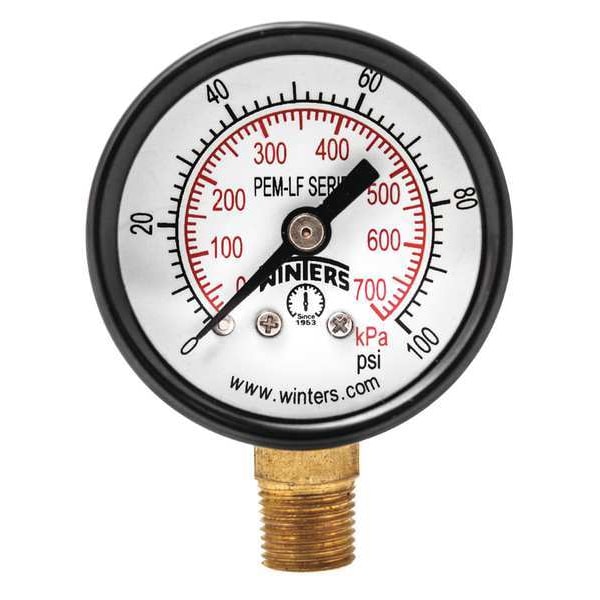

Winters Lead-Free Pressure Gauge, 0 to 100 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location PEM1320LF - main

Lead-Free Pressure Gauge, 0 to 100 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PEM1320LF

  • Zoro # G9757002

product price:  $14.79
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1320LF
Zoro #
G9757002
UPC #
628311202120
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Length
2.30"
Nominal Dial Size
1 1/2 in
Case Depth
1 in
Case Diameter
1.653 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
1 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Characteristics
Friction Bezel Ring
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Calibration Certificate Included
No
Required Gauge Adapter
No
Case Color
Black
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Dial Color
White
Dial Face Material
Aluminum
Process Connection Gender
Male
Sensor Material
Phosphor Bronze
Secondary Pressure Range
0 to 690
Field Fillable
No
Includes Mounting Hardware
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Gauge Case Liquid
None
Pointer Material
Aluminum
Non-Sparking
No
Removable Bezel
No
Sensor Type
Bourdon Tube
Dry Dampening Feature
None
Secondary Scale Units
kPa
Bezel Material
Steel
Case Finish
Painted
Vibration Resistance
None
Movement Material
Stainless Steel
Over-Pressure Limit
25% of Full Scale
Cleaned for Oxygen Service
No
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Case Construction
Welded Joint
Accuracy Scale
Mid-Scale
Accuracy Grade
Grade B
Includes Calibration Certificate
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Includes Vent Plug
No
Pointer Color
Black
Scale Type
Dual
Maximum Pressure
100 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Maximum
690 kPa
Case Liquid
None
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi

Description

Lead-Free Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
