  5. Lead-Free Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location

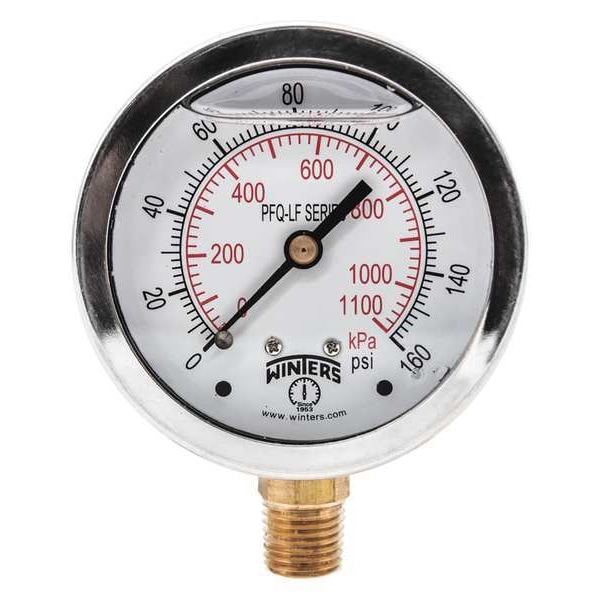

Winters Lead-Free Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location PFQ712LF - main

Lead-Free Pressure Gauge, 0 to 160 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ712LF

  • Zoro # G9756433

product price:  $54.99
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ712LF
Zoro #
G9756433
UPC #
628311266627
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in
Manufacturer Warranty Length
5 yr
Case Diameter
3.917 in
Case Depth
1.173 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
Calibration Certificate Included
No
Case Color
Metallic
Gauge Filled With
Glycerin
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Gauge Special Options
Restricted Orifice
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Required Gauge Adapter
No
Socket Material
Lead Free Brass
Case Material
304 Stainless Steel
NSF Certified
Yes
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Standards
ASME, CRN
Over-Pressure Limit
25%
Includes Vent Plug
Yes
Bezel Material
304 Stainless Steel
Secondary Scale Units
kPa
Dry Dampening Feature
None
Freeze Resistant Movement
No
Secondary Pressure Range
0 to 1,100
Pressure Gauge Type
Lead-Free Pressure Gauge
Includes Mounting Hardware
No
Non-Sparking
No
Sensor Type
Bourdon Tube
Pointer Color
Black
Removable Bezel
Yes
Process Temperature Range
-4 Degrees to 150 Degrees F
Field Fillable
No
Movement Material
Lead Free Brass
Process Connection Gender
Male
Cleaned for Oxygen Service
No
Bezel Mounting Type
Crimped
Sensor Material
Phosphor Bronze
Accuracy Scale
Full Scale
Pressure Range Type
Pressure
Includes Calibration Certificate
No
Pointer Material
Aluminum
Case Construction
Welded Joint
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Bezel Gasket Material
Silicone
Dial Color
White
Gauge Case Liquid
Glycerin
Scale Type
Dual
Dial Face Material
Aluminum
Vibration Resistance
Liquid-Filled
Maximum Pressure
160 psi
Operating Temperature Range
-4 Degrees to 150 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-4 Degrees F
Case Liquid
Glycerin
IP Rating
IP65
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Compatible with Brand
Universal
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi

Description

Lead-Free Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
