  5. Lead-Free Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location
Winters Lead-Free Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PEM1437LF - main

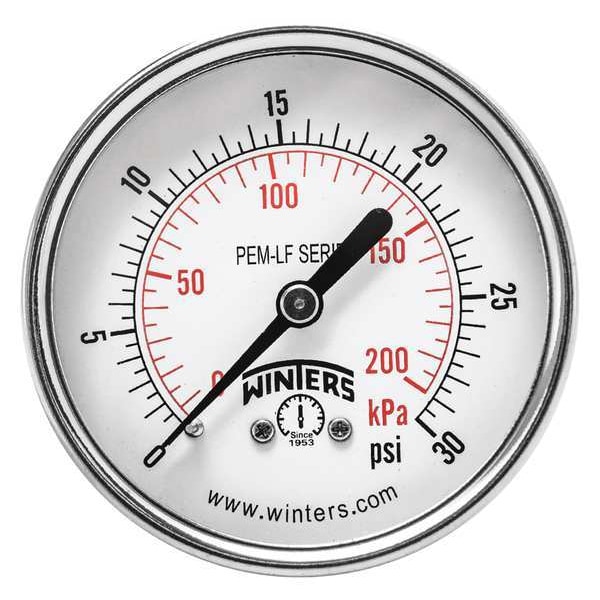

Lead-Free Pressure Gauge, 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PEM1437LF

  • Zoro # G9756686

product price:  $14.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1437LF
Zoro #
G9756686
UPC #
628311202502
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
1.850"
Manufacturer Warranty Length
5 yr
Case Diameter
2 1/2 in
Nominal Dial Size
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Characteristics
Friction Bezel Ring
Required Gauge Adapter
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Calibration Certificate Included
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Color
Black
Socket Material
Lead Free Brass
Case Material
Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Includes Calibration Certificate
No
Vibration Resistance
None
Case Finish
Painted
Case Construction
Welded Joint
Dial Color
White
Pressure Gauge Type
Lead-Free Pressure Gauge
Field Fillable
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Accuracy Scale
Mid-Scale
Gauge Case Liquid
None
Dry Dampening Feature
None
Bezel Material
Steel
Includes Mounting Hardware
No
Includes Vent Plug
No
Cleaned for Oxygen Service
No
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Dial Face Material
Aluminum
Sensor Material
Phosphor Bronze
Secondary Pressure Range
0 to 200
Process Temperature Range
-40 Degrees to 150 Degrees F
Freeze Resistant Movement
No
Removable Bezel
No
Pointer Material
Aluminum
Sensor Type
Bourdon Tube
Process Connection Gender
Male
Secondary Scale Units
kPa
Movement Material
Stainless Steel
Over-Pressure Limit
25% of Full Scale
Pressure Range Type
Pressure
Accuracy Grade
Grade B
Scale Type
Dual
Pointer Color
Black
Non-Sparking
No
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Lead-Free Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Nominal Dial Size 2 1/2 in, Lens Material Plastic, IP/NEMA Rating IP52, Hazardous Location Rating Not Rated, Compatible Process Media Non-Clogging, Non-Corroding, Potable Water, Sensor Material Phosphor Bronze, Socket Material Lead Free Brass, Sensor Type Bourdon Tube, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in
