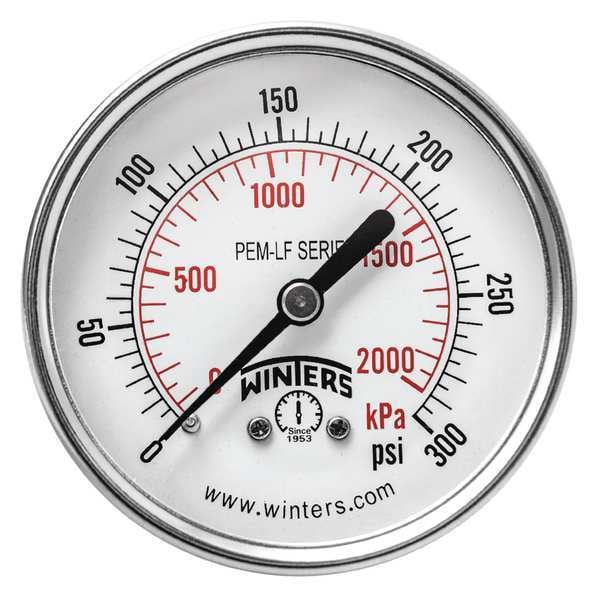

Winters Lead-Free Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PEM1442LF - main

Lead-Free Pressure Gauge, 0 to 300 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PEM1442LF

  • Zoro # G9756634

product price:  $15.75
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PEM1442LF
Zoro #
G9756634
UPC #
628311202557
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
1.850"
Case Diameter
2 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Required Gauge Adapter
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Color
Black
Characteristics
Friction Bezel Ring
Calibration Certificate Included
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ANSI/ASME, CRN, NSF
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Case Construction
Welded Joint
Sensor Material
Phosphor Bronze
Removable Bezel
No
Includes Mounting Hardware
No
Over-Pressure Limit
25% of Full Scale
Pressure Range Type
Pressure
Accuracy Grade
Grade B
Bezel Material
Steel
Dry Dampening Feature
None
Process Connection Gender
Male
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Secondary Pressure Range
0 to 2,100
Dial Color
White
Pressure Gauge Type
Lead-Free Pressure Gauge
Case Finish
Painted
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pointer Material
Aluminum
Non-Sparking
No
Scale Type
Dual
Field Fillable
No
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Accuracy Scale
Mid-Scale
Movement Material
Stainless Steel
Sensor Type
Bourdon Tube
Vibration Resistance
None
Secondary Scale Units
kPa
Pointer Color
Black
Gauge Case Liquid
None
Process Temperature Range
-40 Degrees to 150 Degrees F
Dial Face Material
Aluminum
Includes Vent Plug
No
Freeze Resistant Movement
No
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Lead-Free Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Nominal Dial Size 2 1/2 in, Lens Material Plastic, IP/NEMA Rating IP52, Hazardous Location Rating Not Rated, Compatible Process Media Non-Clogging, Non-Corroding, Potable Water, Sensor Material Phosphor Bronze, Socket Material Lead Free Brass, Sensor Type Bourdon Tube, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in
