  5. Industrial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location
Pic Gauges Industrial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254CC - main

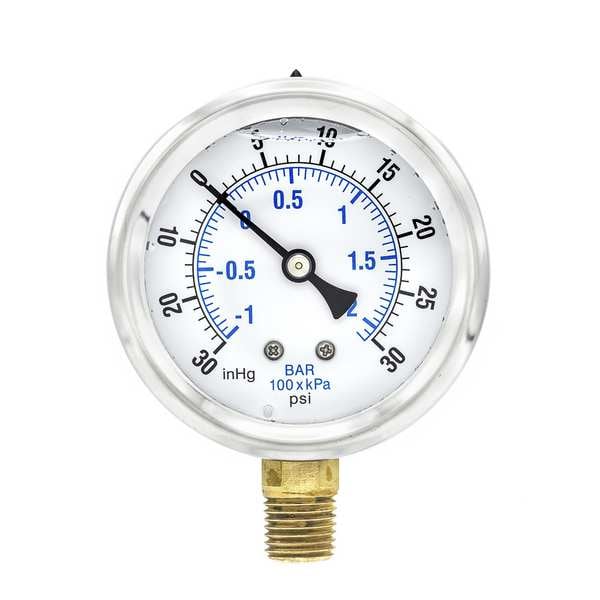

Industrial Compound Gauge, 30 to 0 to 30 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254CC

  • Zoro # G5120011

product price:  $18.85
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254CC
Zoro #
G5120011
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Case Depth
1.2 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.65 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Case Color
Metallic
Smallest Graduation
0.5 psi, 1 in Hg
Gauge Application
General Purpose
Gauge Primary Range Smallest Graduation
1/0.5
Gauge Filled With
Glycerin
Includes
Vent Plug
Case Material
Stainless Steel
Socket Material
Copper Alloy
Connection Type
MNPT
Wetted Materials
Copper
Standards
ASME
Process Connection Gender
Male
Includes Calibration Certificate
No
Pointer Material
Aluminum
Pressure Range Type
Compound
Includes Mounting Hardware
No
Non-Sparking
No
Pointer Color
Black
Pressure Gauge Type
Industrial Pressure Gauge
Includes Vent Plug
Yes
Cleaned for Oxygen Service
No
Secondary Scale Units
bar
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Gauge Case Liquid
Glycerin
Sensor Material
Copper Alloy
Accuracy Scale
Mid-Scale
Field Fillable
No
Removable Bezel
No
Accuracy Grade
ASME B40.100 Grade A
Freeze Resistant Movement
No
Dry Dampening Feature
None
Bezel Material
Stainless Steel
Bezel Mounting Type
Fixed
Secondary Pressure Range
0 to 2
Scale Type
Dual
Dial Color
White
Vibration Resistance
Liquid-Filled
Maximum Pressure
30
Operating Temperature Range
30 Degrees to 160 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Secondary Scale Pressure Measurement - Maximum
2 bar
Compatible with Brand
Universal
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Primary Scale Vacuum Measurement - Maximum
30 psi
Compatible with Series
201L
NEMA Enclosure Rating
No Enclosure
Primary Scale Pressure Measurement - Maximum
30 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Operating Temperature - Maximum
180 Degrees F

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
