  5. Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location

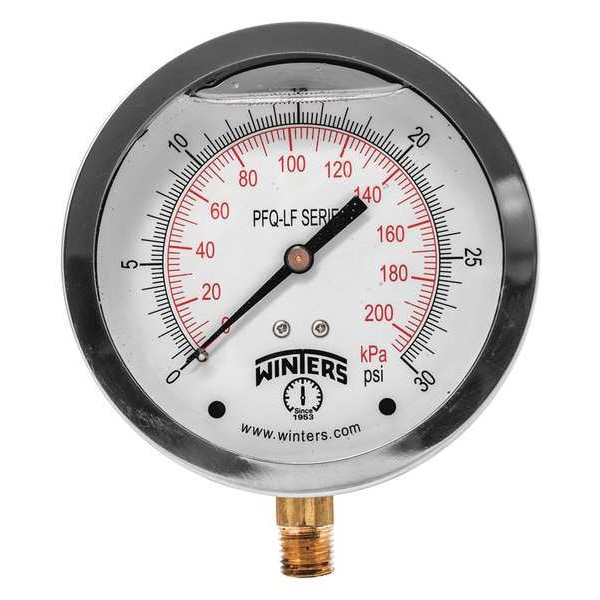

Winters Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location PFQ709LF - main

Lead-Free Pressure Gauge, 0 to 30 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ709LF

  • Zoro # G9756467

product price:  $54.99
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ709LF
Zoro #
G9756467
UPC #
628311266597
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Nominal Dial Size
4 in
Manufacturer Warranty Length
5 yr
Case Depth
1.173 in
Case Diameter
3.917 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Filled With
Glycerin
Gauge Special Options
Restricted Orifice
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Calibration Certificate Included
No
Case Color
Metallic
Required Gauge Adapter
No
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
Case Material
304 Stainless Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ASME, CRN
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Includes Calibration Certificate
No
Vibration Resistance
Liquid-Filled
Field Fillable
No
Dry Dampening Feature
None
Sensor Material
Phosphor Bronze
Pointer Color
Black
Process Temperature Range
-4 Degrees to 150 Degrees F
Bezel Mounting Type
Crimped
Over-Pressure Limit
25%
Dial Face Material
Aluminum
Bezel Material
304 Stainless Steel
Removable Bezel
Yes
Movement Material
Lead Free Brass
Pressure Gauge Type
Lead-Free Pressure Gauge
Accuracy Scale
Full Scale
Sensor Type
Bourdon Tube
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Gauge Case Liquid
Glycerin
Secondary Pressure Range
0 to 200
Case Construction
Welded Joint
Pointer Material
Aluminum
Includes Vent Plug
Yes
Process Connection Gender
Male
Freeze Resistant Movement
No
Bezel Gasket Material
Silicone
Dial Color
White
Scale Type
Dual
Cleaned for Oxygen Service
No
Pressure Range Type
Pressure
Non-Sparking
No
Includes Mounting Hardware
No
Secondary Scale Units
kPa
Maximum Pressure
30
Operating Temperature Range
-4 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Secondary Scale Pressure Measurement - Maximum
200 kPa
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Case Liquid
Glycerin
Process Media Temperature - Minimum
-4 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
NEMA Enclosure Rating
4
IP Rating
IP65
Operating Temperature - Maximum
150 Degrees F

Description

Lead-Free Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
