  5. Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

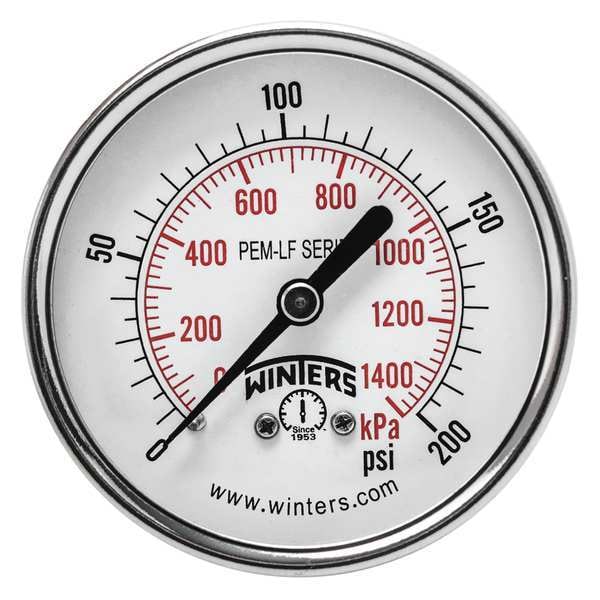

Winters Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location PEM1441LF - main

Lead-Free Pressure Gauge, 0 to 200 psi, 2 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PEM1441LF

  • Zoro # G9756643

product price:  $14.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1441LF
Zoro #
G9756643
UPC #
628311202540
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
1.850"
Case Diameter
2 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Characteristics
Friction Bezel Ring
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Required Gauge Adapter
No
Case Color
Black
Socket Material
Lead Free Brass
Case Material
Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Pressure Range Type
Pressure
Non-Sparking
No
Dry Dampening Feature
None
Case Finish
Painted
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Accuracy Scale
Mid-Scale
Sensor Type
Bourdon Tube
Removable Bezel
No
Field Fillable
No
Case Construction
Welded Joint
Vibration Resistance
None
Dial Color
White
Pointer Material
Aluminum
Over-Pressure Limit
25% of Full Scale
Gauge Case Liquid
None
Pressure Gauge Type
Lead-Free Pressure Gauge
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Secondary Scale Units
kPa
Cleaned for Oxygen Service
No
Dial Face Material
Aluminum
Bezel Material
Steel
Process Connection Gender
Male
Scale Type
Dual
Process Temperature Range
-40 Degrees to 150 Degrees F
Includes Mounting Hardware
No
Accuracy Grade
Grade B
Secondary Pressure Range
0 to 1,400
Includes Calibration Certificate
No
Movement Material
Stainless Steel
Freeze Resistant Movement
No
Pointer Color
Black
Includes Vent Plug
No
Sensor Material
Phosphor Bronze
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Lead-Free Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Nominal Dial Size 2 1/2 in, Lens Material Plastic, IP/NEMA Rating IP52, Hazardous Location Rating Not Rated, Compatible Process Media Non-Clogging, Non-Corroding, Potable Water, Sensor Material Phosphor Bronze, Socket Material Lead Free Brass, Sensor Type Bourdon Tube, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in
