  9. Panel-Mount Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location

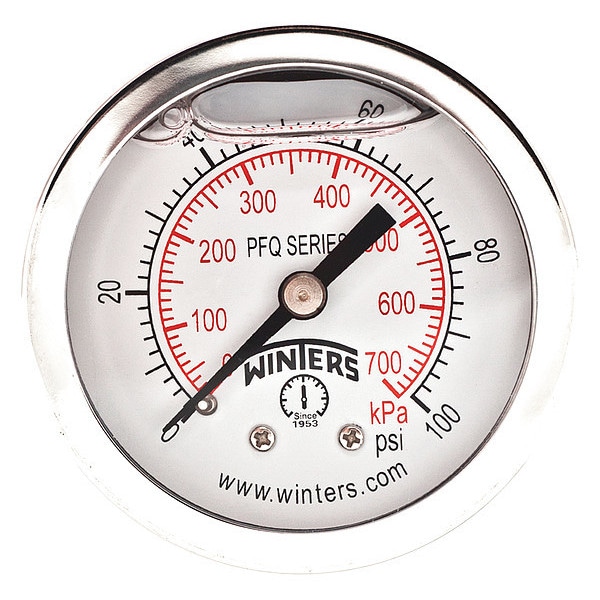

Winters Panel-Mount Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location PFQ2489-DRY-2FF - main

Panel-Mount Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # PFQ2489-DRY-2FF

  • Zoro # G1605254

product price: $13.19
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFQ2489-DRY-2FF
Zoro #
G1605254
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Flange Diameter
2 in
Case Diameter
2.035 in
Nominal Dial Size
2 in
Case Depth
0.92 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Special Options
Heavy Duty
Socket Material
Brass
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
10/50
Gauge Primary Range Numbered Graduations
20/100
Connection Type
MNPT
Smallest Graduation
2 psi/10 kPa
Case Color
Metallic
Standards
ASME, CRN
Gauge Secondary Range Values
0 to 690
For Use With
Media Compatible with Bronze
Case Material
304 Stainless Steel
Features
Ring Terminal
Removable Bezel
Yes
Sensor Type
Bourdon Tube
Freeze Resistant Movement
No
Field Fillable
Yes
Non-Sparking
No
Pressure Range Type
Pressure
Bezel Gasket Material
Silicone
Cleaned for Oxygen Service
No
Sensor Material
Phosphor Bronze
Dial Color
White
Accuracy Scale
Full Scale
Secondary Scale Units
kPa
Pointer Color
Black
Compatible Process Media
Air, Water
Process Temperature Range
-40 Degrees to 200 Degrees F
Vibration Resistance
Field-Fillable
Bezel Mounting Type
Crimped
Case Construction
Welded Joint
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 690
Gauge Case Liquid
None
Scale Type
Dual
Bezel Material
304 Stainless Steel
Over-Pressure Limit
25%
Dial Face Material
Aluminum
Process Connection Gender
Male
Movement Material
Brass OT59
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Material
Aluminum
Includes Vent Plug
Yes
Dry Dampening Feature
None
Operating Temperature Range
-40 Degrees to 200 Degrees F
Secondary Scale Pressure Measurement - Maximum
690 kPa
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
IP Rating
IP65
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Process Media Temperature - Maximum
200 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Maximum
100 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
