  5. Pressure Gauge, 0 to 200 psi psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location

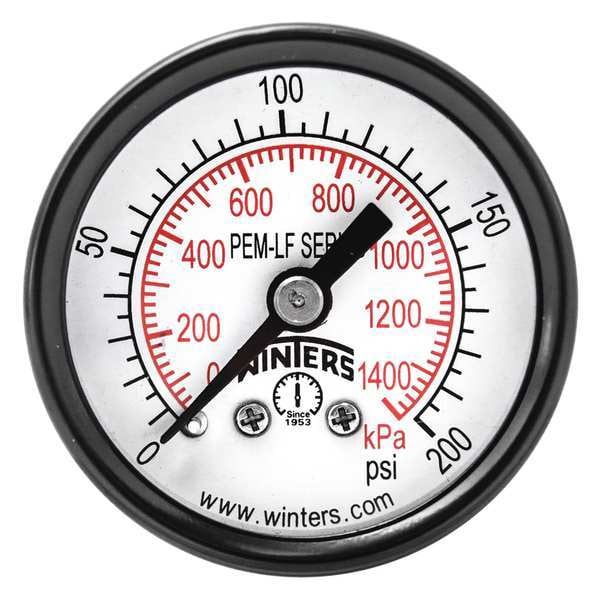

Winters Pressure Gauge, 0 to 200 psi psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location PEM1422LF - main

Pressure Gauge, 0 to 200 psi psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location

  • Mfr # PEM1422LF

  • Zoro # G9756783

product price:  $11.49
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in NPT
Dial Size (In.)
1 1/2 in
Gauge Case Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1422LF
Zoro #
G9756783
UPC #
628311202069
Country of Origin
China

Dimensions

Process Connection Size
1/8 in NPT
Dial Size (In.)
1 1/2 in
Length
1.515"
Case Diameter
1.660 in
Nominal Dial Size
1 1/2 in
Manufacturer Warranty Length
5 yr

Details

Item
Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200 psi
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Characteristics
Friction Bezel Ring
Required Gauge Adapter
No
Calibration Certificate Included
No
Case Color
Black
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Material
Steel
Pressure Range
0 to 200 psi/kPa
Socket Material
Brass
NSF Certified
Yes
Standards
CRN Registered
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Pressure Range Type
Pressure Gauge
Sensor Material
Bronze
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Lens Material Polycarbonate, Socket Material Brass
