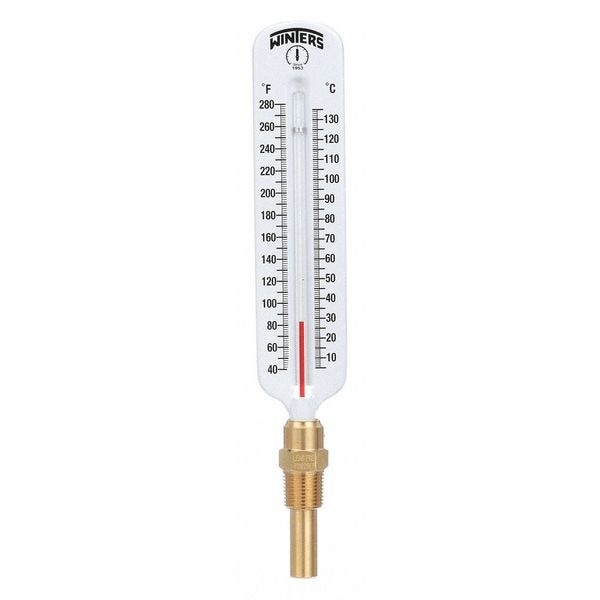

Thermometer, Analog, -40-280 deg, 1/2in NPT

  • Mfr # TSW172LF.

  • Zoro # G7622176

product price:
$
32.45
/ea

Key Features

Temp. Range (F)
40 Degrees to 280 Degrees F
Connection Location
Straight
Case Material
Steel
Fill
Organic Fluid
Includes
Separable Lead Free Brass Thermowell
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSW172LF.
Zoro #
G7622176
UPC #
628311002256
Country of Origin
China

Dimensions

Connection Size
1/2 in NPT
Thermometer Thread Size
1/2 in
Scale Length
8 in
Thermowell Thread Size
1/2 in
Immersion Depth
2.525 in
Stem Length
2.525 in
Overall Depth
1.8 in
Overall Width
0.3 in
Overall Height
10.725 in

Details

Item
Industrial Glass Thermometer
Temp. Range (F)
40 Degrees to 280 Degrees F
Connection Location
Straight
Case Material
Steel
Fill
Organic Fluid
Includes
Separable Lead Free Brass Thermowell
Special Features
8 in Scale, Easy To Install, Separable Thermowell
Temp. Range (C)
40 Degrees to 280 Degrees
Accuracy
+/-1 %
Process Connection
1/2 in NPT Thermometer x 1/2 in NPT Thermowell
Standards
Lead Free
Application
Boilers, Hot Water Lines, Hydronic Heating, Potable Water Systems
NSF Certified
Yes
Fluid Material
Kerosene
Corrosion Resistant
No
Fluid Color
Green
Minimum Temperature C
5 Degrees C
Shank Type
Straight
Temperature Range
40 Degrees to 280 Degrees F/5 Degrees to 135 Degrees C
Lead Free
Yes
Thermometer Thread Gender
Male
Maximum Temperature F
280 Degrees F
Maximum Operating Pressure
710 psi
Thermowell Material
Lead-Free Brass
Resistance Rating
IP54
Thermometer Type
Lead-Free Glass Thermometer Assembly
Maximum Temperature C
135 Degrees C
Scale Type
Liquid-in-Glass
NSF Rated
Yes
Thermowell Thread Type
NPT
Scale
Celsius, Fahrenheit
Includes NIST-Traceable Certificate
No
Fluid
Green Kerosene
Thermometer Thread Type
NPT
Includes Thermowell
Yes
Thermowell Thread Gender
Male
Minimum Temperature F
40 Degrees F
Maximum Temperature °F
280 Degrees F
Minimum Temperature °F
40 Degrees F
Maximum Temperature °C
135 Degrees C
Minimum Temperature °C
5 Degrees C
Maximum Temperature °C
135 Degrees C
Maximum Temperature °F
280 Degrees F
Minimum Temperature °C
5 Degrees C
Minimum Temperature °F
40 Degrees F
Housing Material
Aluminum
Mount Position
Bottom
IP Rating
IP54
Maximum Temperature (°C)
135 Degrees C
Display Type
Liquid-in-Glass
Maximum Temperature (°F)
280 Degrees F
Mounting Hardware
Thread
Immersion Type
Full Immersion
Temperature Units
Celsius, Fahrenheit

Description

Industrial Glass Thermometer, 40 Degrees to 280 Degrees F/5 Degrees to 135 Degrees C, 1/2 in NPT Thermometer x 1/2 in NPT Thermowell, Pipe, 8 in Scale Length, Thermowell Material Lead-Free Brass, Shank Type Straight, Green, Liquid-in-Glass
