  9. Vacuum Gauge, 2in., 30in. Hg Vac to 0

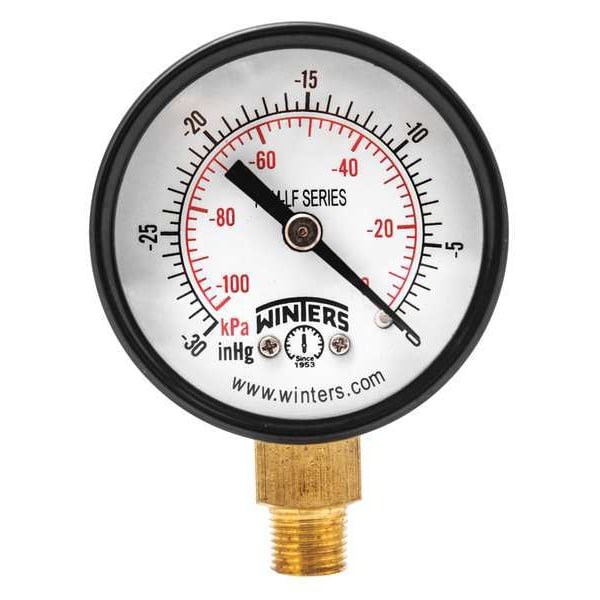

Winters Vacuum Gauge, 2in., 30in. Hg Vac to 0 PEM195LF - main

Vacuum Gauge, 2in., 30in. Hg Vac to 0

  • Mfr # PEM195LF

  • Zoro # G9756625

product price: $8.39
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Lead Free
Liquid Filled
No
Gauge Nominal Dial Size
2 in
Basic Gauge Case Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PEM195LF
Zoro #
G9756625
UPC #
628311202243
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 in
Gauge Connection Size
1/8 in
Connection Size
1/8 in NPT
Manufacturers Warranty Length
5 yr
Nominal Dial Size
2 in
Manufacturer Warranty Length
5 yr
Case Diameter
2.19 in
Process Connection Size
1/8 in
Case Depth
1.161 in
Nominal Dial Diameter
2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Lead Free
Liquid Filled
No
Basic Gauge Case Material
Steel
Basic Gauge Wetted Parts
Brass / Bronze
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Item
Lead-Free Vacuum Gauge
Required Gauge Adapter
No
Gauge Case Material
Steel
Series
PEM-LF
Gauge Sensor Material
Lead Free Phosphor Bronze
Calibration Certificate Included
No
Operating Temp. Range
-40 Degrees to 150 Degrees F
Case Color
Black
Gauge Socket Material
Brass
Gauge Primary Range Values
-30 to 0
Gauge Case Color
Black
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Bronze
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Basic Gauge Socket Material
Brass
Range
30 in Hg Vac to 0
Gauge Lens Material
Polycarbonate
Gauge Panel Mountable
No
Gauge Accuracy
+/-3-2-3%
Connection Location
Bottom
Characteristics
Friction Bezel Ring
NSF Certified
Yes
Accuracy Scale
Mid-Scale
Pressure Range Type
Vacuum
Blowout Safety Back
No
Secondary Scale Units
kPa
Process Temperature Range
-40 Degrees to 150 Degrees F
Gauge Case Liquid
None
Process Connection Gender
Male
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Standards
ANSI/ASME, CRN, NSF
Bezel Material
Steel
Pointer Color
Black
Accuracy
+/-3-2-3%
Includes Vent Plug
No
Includes Calibration Certificate
No
Case Finish
Painted
Pressure Gauge Type
Lead-Free Pressure Gauge
Socket Material
Lead Free Brass
Sensor Material
Bronze
Lens Material
Plastic
Process Connection Type
NPT
Pointer Material
Aluminum
Movement Material
Stainless Steel
Non-Sparking
No
Removable Bezel
No
IP/NEMA Rating
IP52
Primary Pressure Range
30 to 0
Liquid-Filled Case
No
Dry Dampening Feature
None
Process Connection Location
Bottom
Cleaned for Oxygen Service
No
Sensor Type
Bourdon Tube
Scale Type
Dual
Hazardous Location Rating
Not Rated
Vibration Resistance
None
Dial Face Material
Aluminum
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Grade
Grade B
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Freeze Resistant Movement
No
Secondary Pressure Range
-101 to 0
Case Construction
Welded Joint
Field Fillable
No
Panel-Mountable
No
Includes Mounting Hardware
No
Primary Scale Units
in Hg
Case Material
Steel
Dial Color
White
Over-Pressure Limit
25%
Case Liquid
None
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 in Hg
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 in Hg
NEMA Enclosure Rating
5
Compatible with Brand
Universal
IP Rating
IP52
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Secondary Scale Vacuum Measurement - Maximum
0 kPa

Description

Lead-Free Vacuum Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
