This item is Discontinued.

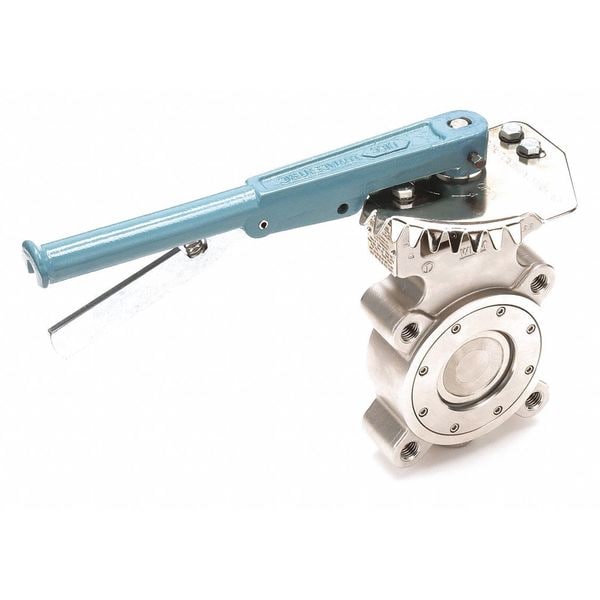

Wkm Dynacentric Butterfly Valve, Stainless Steel, 10 In 10-B5123-02-S02-11/WG

Butterfly Valve, Stainless Steel, 10 In (Discontinued)

  • Mfr # 10-B5123-02-S02-11/WG
  • Zoro # G8928814
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
10-B5123-02-S02-11/WG
Zoro #
G8928814
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
10 in
Lug Dia.
16 in
Bolt Circle Dia.
14 1/4 in
Nominal Valve Size
10 in
Lug Diameter
16 in

Details

Item
Butterfly Valve
Style
Lug
Body Material
Stainless Steel
Max. Water Pressure
150 psi
Handle Type
Gear Operated Handwheel
Number of Bolt Holes
12
Disc Material
316 Stainless Steel
Liner Material
PTFE
Temp. Range
-20 to 500 Degrees F
Standards
API, ASME B16.34, ASME B16.5, CE, CE/PED, MSS SP-25, MSS SP-55, MSS SP-6, MSS SP-68, PI
Compliance
ASME B16.34 Steel Valves, ASME B16.5, ASME/FCI 70-2 Control Valve leakage, MSS-SP-%% Quality Castings, US Coast Guard Category A
Seal Material
MPTFE
Connection Type
Lug
Number of Flange Bolt Holes
12
For Media
Gas, Oil, Slurry, Steam, Water
ANSI Flange Class
Class 150
Vacuum Service Rating
Not Rated
Includes Disc Position Indicator
Disc Position Indicator Included
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
750 Degrees F
Stem Material
Stainless Steel
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
150 psi
Valve Series
MB

Description

Butterfly Valve, Lug Style, Body Material Stainless Steel, Max. Water Pressure 150 psi, Pipe Size 10 in, Temp. Range -20 to 500 Degrees F, Liner Material PTFE, Disc Material 316 Stainless Steel, Handle Type Gear Operated Handwheel, Number of Bolt Holes 12, Bolt Circle Dia. 14 1/4 in, Lug Dia. 16 in, Standards API, ASME B16.34, ASME B16.5, CE, CE/PED, MSS SP-25, MSS SP-55, MSS SP-6, MSS SP-68, PI
