  5. 1 HP 1-1/2" F Submersible Sump Pump 115V Piggyback

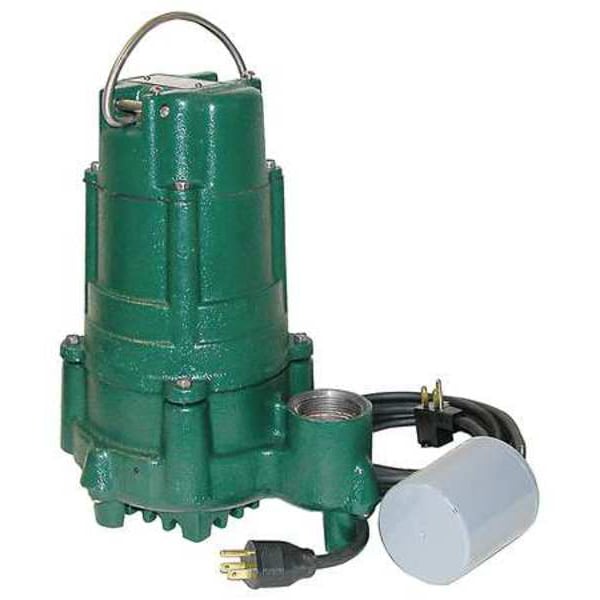

Zoeller 1 HP 1-1/2" F Submersible Sump Pump 115V Piggyback 140-0029 - main
Shop ZOELLER

1 HP 1-1/2" F Submersible Sump Pump 115V Piggyback

  • Mfr # 140-0029

  • Zoro # G4554812

product price:  $726.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
140-0029
Zoro #
G4554812
UPC #
053514325404
Country of Origin
United States

Dimensions

Cord Length
20 ft
Diameter
10-3/16"
Manufacturers Warranty Length
1 yr
Height
12-3/8"
Max. Diameter Solids
3/4 in
Cord Length - Pumps
10 ft.
Min. Sump Pit Dia.
18 in
Max. Dia. Solids
3/4"
Discharge Dia.
1 1/2 in
Body Dia.
10 3/16 in
Overall Height
12 3/8 in
Discharge Diameter
1 1/2 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
3/4 in
Body Diameter
10 1/4 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1
Hz
60 Hz
Impeller Material
Thermoplastic
Includes
Piggyback Float Switch
Max. Head
50 ft
Max. Temp.
130 Degrees F
Motor RPM
3450
Motor Type
Permanent Split Capacitor
Shaft Seal
Carbon/Ceramic
Voltage
115V
Phase
Single
Mechanical Seal
CRB/CMC
Amps
12 A
Switch Type
Piggyback
GPM of Water @ 30 Ft. of Head
49
GPM of Water @ 40 Ft. of Head
28
GPM of Water @ 20 Ft. of Head
66
Alarm
No
Base Material
Cast Iron
Amps - Pumps
12.00
GPM of Water @ 15 Ft. of Head
73
Shaft Seal Material - Pumps
Carbon, Ceramic
NEC Cord Designation
SOW
On Point
Variable
Max. Head - Pumps
50 ft.
Max. Liquid Temp.
130 Degrees F
Item - Sump Pumps
Submersible Sump Pump
Alarm Included
No
Bearing Type
Dual Ball
Impeller Material - Pumps
Polypropylene
Duty
Intermittent
Features
Durable Cast Iron Construction, Available In Both Single and Double Shaft Seal Designs, Stainless Steel Bolts and Lifting Handle
GPM of Water @ 10 Ft. of Head
80
Switch Type - Pumps
Piggyback Float
Voltage - Pumps
120VAC
Thermal Protection
Manual
Off Point
Variable
GPM of Water @ 25 Ft. of Head
59
Pump Body Material
Cast Iron
GPM of Water @ 5 Ft. of Head
86
Agency Compliance
CSA
Item
Submersible Sump Pump
Gauge/Conductor
16/3
Flow Rate @ 15 Ft. of Head
73 gpm
Flow Rate @ 10 Ft. of Head
80 gpm
Rated Voltage
115V AC
Duty Cycle
Continuous
Body Material
Cast Iron
Discharge Gender
Female
Discharge Standard
NPT
Flow Rate @ 5 Ft. of Head
86 gpm
Flow Rate @ 20 Ft. of Head
66 gpm
Discharge
1 1/2 in FNPT
Switch Actuation
Tether Float
Switch Electrical Connection
Piggyback
RPM
3,450 RPM
Flow Rate @ 40 ft of Head
28 gpm
Current
12 A
Power Source
Corded Electric
Flow Rate @ 10 ft of Head
80 gpm
Horsepower
1 hp
Volute Material
Cast Iron
Liquid Temperature - Maximum
130 Degrees F
Standards
CSA Certified
Includes Alarm
No Alarm Included
For Media Type
Effluent Water
Shaft Seal Material
Carbon/Ceramic
Requires Control Panel
No Control Panel Required
Motor Housing Material
Cast Iron
Feet of Head - Maximum
50 ft
Shaft Seal Type
Single Mechanical
Hazardous Location Class
Not Rated
Flow Rate @ 20 ft of Head
66 gpm
Rotation Speed - Maximum
3,450 RPM
Impeller Design
Vortex

Description

Submersible Sump Pump, HP 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 12 A, Body Material Cast Iron, Impeller Material Thermoplastic, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point Variable, On Point Variable, Flow Rate @ 10 Ft. of Head 80 gpm, Flow Rate @ 15 Ft. of Head 73 gpm, Flow Rate @ 20 Ft. of Head 66 gpm, Max. Head 50 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 3/16 in, Overall Height 12 3/8 in, Cord Length 20 ft
