  5. 3/10 HP 1-1/2" F Submersible Sump Pump 115
Zoeller 3/10 HP 1-1/2" F Submersible Sump Pump 115 371-0002 - main

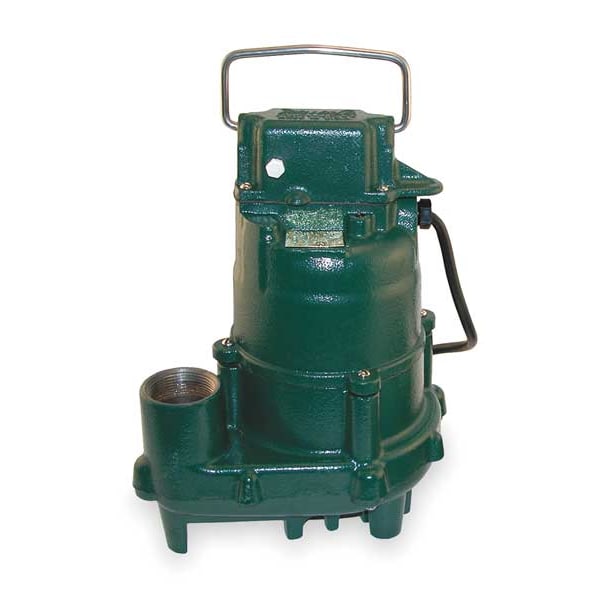

3/10 HP 1-1/2" F Submersible Sump Pump 115

  • Mfr # 371-0002

  • Zoro # G0926956

product price:  $283.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
3/10
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
371-0002
Zoro #
G0926956
UPC #
053514245863
Country of Origin
United States

Dimensions

Cord Length
20 ft
Min. Sump Pit Dia.
18 in
Max. Dia. Solids
3/8"
Cord Length - Pumps
10"
Diameter
10-3/32"
Manufacturers Warranty Length
1 yr
Max. Diameter Solids
1/2 in
Height
10-1/16"
Discharge Dia.
1 1/2 in
Body Dia.
10 3/32 in
Overall Height
10 1/8 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Body Diameter
10 1/8 in
Solids Diameter - Maximum
1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
3/10
Hz
60 Hz
Impeller Material
Thermoplastic
Max. Head
19 ft
Max. Temp.
130 Degrees F
Motor RPM
1550
Motor Type
Shaded Pole
Shaft Seal
Silicon Carbide
Voltage
115
Phase
Single
Max. Head - Pumps
19 ft.
Item
Submersible Sump Pump
Pump Body Material
Cast Iron
Switch Type - Pumps
No Switch Included
GPM of Water @ 5 Ft. of Head
43
Max. Liquid Temp.
130 Degrees F
Bearing Type
Ball
GPM of Water @ 15 Ft. of Head
19
Base Material
Plastic
GPM of Water @ 10 Ft. of Head
34
Impeller Material - Pumps
Glass Filled Plastic
Amps
9.7 A
Amps - Pumps
9.70
Mechanical Seal
SiC
Item - Sump Pumps
Submersible Evaporative Cooling Pump
Shaft Seal Material - Pumps
Silicone Carbide
Duty
Continuous
NEC Cord Designation
SJTW
Thermal Protection
Manual
Voltage - Pumps
120VAC
Alarm
No
Gauge/Conductor
18/3
Alarm Included
No
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
19 gpm
Discharge Gender
Female
Flow Rate @ 5 Ft. of Head
43 gpm
Body Material
Cast Iron
Rated Voltage
115V AC
Discharge
1 1/2 in FNPT
RPM
1,550 RPM
Flow Rate @ 10 Ft. of Head
34 gpm
Switch Actuation
No Switch Included
Switch Electrical Connection
No Switch Included
Duty Cycle
Continuous
Feet of Head - Maximum
19 ft
Rotation Speed - Maximum
1,550 RPM
Shaft Seal Type
Single Mechanical
For Media Type
Effluent Water
Power Source
Corded Electric
Requires Control Panel
Control Panel Required
Horsepower
1/2 hp
Current
9.7 A
Flow Rate @ 10 ft of Head
34 gpm
Shaft Seal Material
Silicon Carbide
Volute Material
Cast Iron
Flow Rate @ 40 ft of Head
0 gpm
Motor Housing Material
Cast Iron
Hazardous Location Class
Not Rated
Includes Alarm
No Alarm Included
Liquid Temperature - Maximum
130 Degrees F
Flow Rate @ 20 ft of Head
0 gpm
Impeller Design
Vortex

Description

Submersible Sump Pump, HP 3/10, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.7 A, Body Material Cast Iron, Impeller Material Thermoplastic, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 34 gpm, Flow Rate @ 15 Ft. of Head 19 gpm, Max. Head 19 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 3/32 in, Overall Height 10 1/8 in, Cord Length 20 ft, Discharge Dia. 1 1/2 in, Max. Diameter Solids 1/2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
