  9. 3/10 HP 1-1/2" F Submersible Sump Pump 115V None

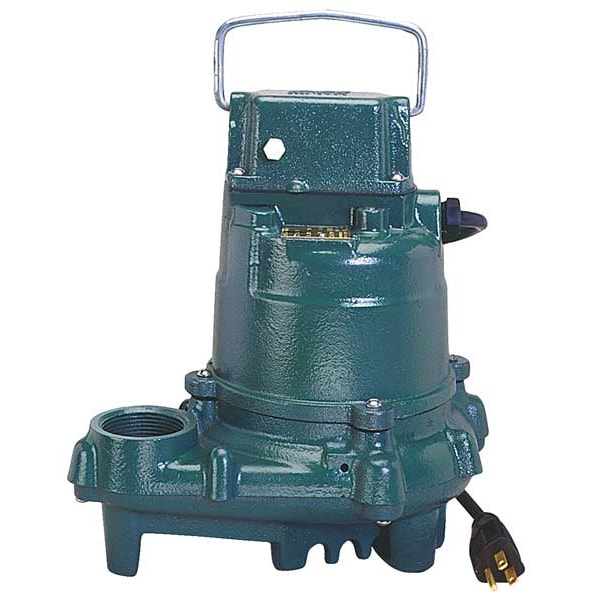

Zoeller 3/10 HP 1-1/2" F Submersible Sump Pump 115V None 57-0002 - main

3/10 HP 1-1/2" F Submersible Sump Pump 115V None

  • Mfr # 57-0002

  • Zoro # G1343063

product price: $292.50
/ea
Free Shipping & Returns

Key Features

Cord Length
9 ft
Discharge NPT
1-1/2" F
Housing Material
Cast Iron or Bronze
HP
3/10
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
57-0002
Zoro #
G1343063
UPC #
053514263072
Country of Origin
United States

Dimensions

Cord Length
9 ft
Diameter
10-3/32"
Height
10-1/16"
Max. Diameter Solids
1/2 in
Manufacturers Warranty Length
3 yr
Max. Dia. Solids
1/2"
Cord Length - Pumps
15 ft.
Min. Sump Pit Dia.
18 in
Body Dia.
10 3/32 in
Discharge Dia.
1 1/2 in
Overall Height
10 1/8 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
10 1/8 in
Solids Diameter - Maximum
1/2 in
Discharge Diameter
1 1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast Iron or Bronze
HP
3/10
Hz
60 Hz
Impeller Material
Cast Iron
Max. Head
19 ft
Max. Temp.
130 Degrees F
Motor RPM
1550
Motor Type
Thermally Protected
Shaft Seal
Carbon/Ceramic
Voltage
115V
Phase
Single
Switch Type
None
Item - Sump Pumps
Submersible Sump Pump
Max. Liquid Temp.
130 Degrees F
NEC Cord Designation
SJTW
Voltage - Pumps
120VAC
Base Material
Cast Iron
GPM of Water @ 5 Ft. of Head
43
Amps - Pumps
9.70
Mechanical Seal
CRB/CMC
Impeller Material - Pumps
Cast Iron
Max. Head - Pumps
19 ft.
Thermal Protection
Manual
GPM of Water @ 15 Ft. of Head
19
Alarm Included
No
Item
Submersible Sump Pump
Duty
Continuous
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 10 Ft. of Head
34
Switch Type - Pumps
No Switch Included
Amps
9.7 A
Gauge/Conductor
18/3
Bearing Type
Sleeve
Pump Body Material
Cast Iron
Alarm
No
Discharge Standard
NPT
Flow Rate @ 5 Ft. of Head
43 gpm
Flow Rate @ 10 Ft. of Head
34 gpm
Discharge
1 1/2 in FNPT
Flow Rate @ 15 Ft. of Head
19 gpm
Switch Electrical Connection
No Switch Included
RPM
1,550 RPM
Body Material
Cast Iron
Rated Voltage
115V AC
Discharge Gender
Female
Duty Cycle
Continuous
Switch Actuation
No Switch Included
Flow Rate @ 20 ft of Head
0 gpm
Volute Material
Cast Iron
Liquid Temperature - Maximum
130 Degrees F
Flow Rate @ 40 ft of Head
0 gpm
For Media Type
Effluent Water
Power Source
Corded Electric
Shaft Seal Type
Single Mechanical
Motor Housing Material
Cast Iron
Rotation Speed - Maximum
1,550 RPM
Feet of Head - Maximum
19 ft
Hazardous Location Class
Not Rated
Includes Alarm
No Alarm Included
Horsepower
1/2 hp
Requires Control Panel
Control Panel Required
Flow Rate @ 10 ft of Head
34 gpm
Shaft Seal Material
Carbon/Ceramic
Current
9.7 A
Impeller Design
Vortex

Description

Submersible Sump Pump, HP 3/10, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.7 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 34 gpm, Flow Rate @ 15 Ft. of Head 19 gpm, Max. Head 19 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 3/32 in, Overall Height 10 1/8 in, Cord Length 9 ft, Discharge Dia. 1 1/2 in, Max. Diameter Solids 1/2 in
