  11. Check Valve, 10.5 in Overall L

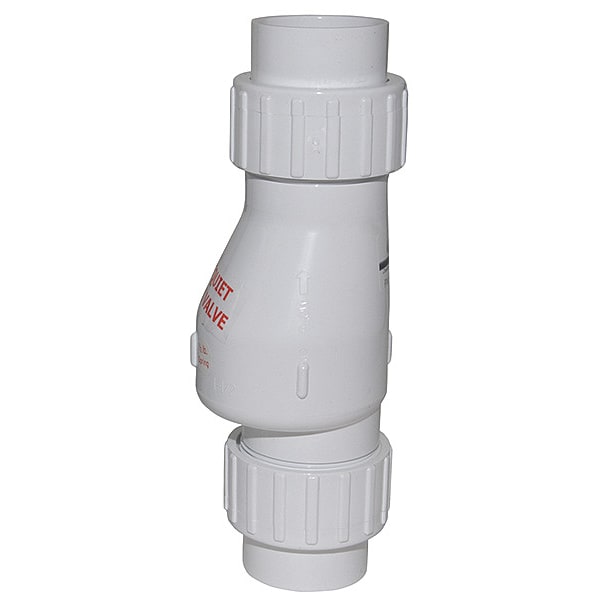

Zoeller Check Valve, 10.5 in Overall L 30-0256 - main

Check Valve, 10.5 in Overall L

  • Mfr # 30-0256

  • Zoro # G200488001

product price: $49.59
/ea

Key Features

Connection Type
Compression x Compression
Body Material
PVC
Standards
CE, CSA, NSF, UL
Overall Length
10.5 in
Mounting Orientation - Check Valves
Horizontal, Vertical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-0256
Zoro #
G200488001
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10.5 in
Length
10 1/2 in
Pipe or Tube Size - Check Valves
2 in
Pipe or Tube Size
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in

Details

Connection Type
Compression x Compression
Body Material
PVC
Standards
CE, CSA, NSF, UL
Mounting Orientation - Check Valves
Horizontal, Vertical
Full Flow - Valves
Yes
Body Material - Valves
PVC
Cracking Pressure
1 psi
Connection Type - Check Valves
Compression x Compression
Seat Material
PVC
Max. Temp. - Valves
130 Degrees F
Item - Check Valves
Check Valve
Application - Valves
Plumbing
Mechanism and Body Design
Union Check Valve
Spring Material
Stainless Steel
Flow
Not Rated
Max. Water Pressure - Valves
50 psi
Item
Check Valve
Mounting Orientation
Horizontal, Vertical
Connection Gender - Side 1
Female
Maximum Pressure - Operating
50 psi
Coefficient of Volume (Cv)
Not Rated
Check Mechanism
Swing
NSF Certifications for Food and Drinking Water
Not Rated
Connection Type - Side 2
Socket
For Media
Water
Operating Temperature - Maximum
130 Degrees F
3-A Standard Compliance
Not Rated
Check Mechanism Material
PVC
Silent Check
Silent
Connection Type - Side 1
Socket
Vacuum Service Rating
Not Rated
Valve Body Style
Inline
Connection Gender - Side 2
Female
Includes Counterweight
Counterweight Included
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
75 Degrees F

Description

Item - Check Valves Check Valve, Mechanism and Body Design Union Check Valve, Body Material - Valves PVC, Pipe or Tube Size 2 in, Connection Type Compression x Compression, Mounting Orientation Horizontal, Vertical, Max. Temp. - Valves 130 Degrees F, Max. Water Pressure - Valves 50 psi, Full Flow - Valves Yes, Application - Valves Plumbing, Length 10 1/2 in, Hex Size Not Applicable, Standards CE, CSA, NSF, UL

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
