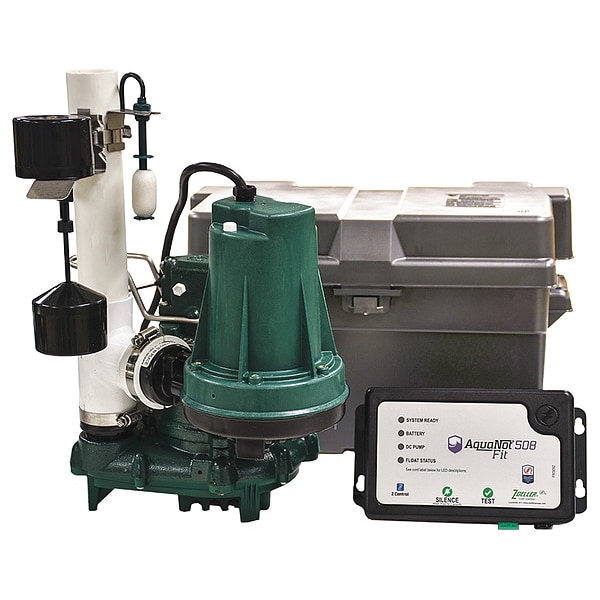

Zoeller Sump/Battery Back-Up System, Pump HP 1/3, Width: 11" 508-0018 - main

Sump/Battery Back-Up System, Pump HP 1/3, Width: 11"

  • Mfr # 508-0018

  • Zoro # G3998843

product price: $1,089.99
/ea
Free Shipping & Returns

Key Features

HP
3/10 (Primary); 1/3 (Secondary)
Body Material
Cast Iron (Primary); Plastic (Secondary)
Alarm Output
Audible, Phone System, Visual, WiFi
Switch Actuation
Vertical Float
Flow Rate @ 10 Ft. of Head
34.0 gpm (Primary); 30.0 gpm (Secondary)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
508-0018
Zoro #
G3998843
UPC #
053514454487
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
18 in
Cord Length
9 ft
Max. Dia. Solids (In.) - Back-Up
1/4
Length
20"
Height
20-1/2"
Manufacturers Warranty Length
3 yr
Overall Height
20 1/2 in
Cord Length - Pumps
9 ft.
Max. Diameter Solids
1/2 in
Width
11"
Diameter
18"
Primary Pump Maximum Solids Diameter
1/2 in
Width at Widest Point
11 in
Primary Pump Overall Height
20 1/2 in
Primary Pump Width at Widest Point
11 in
Discharge Dia.
1 1/2 in
Body Dia.
18 in
Discharge Diameter
1 1/2 in
Sump Pit Diameter - Minimum
18 in
Primary Pump Solids Diameter - Maximum
1/2 in

Details

HP
3/10 (Primary); 1/3 (Secondary)
Body Material
Cast Iron (Primary); Plastic (Secondary)
Alarm Output
Audible, Phone System, Visual, WiFi
Switch Actuation
Vertical Float
Flow Rate @ 10 Ft. of Head
34.0 gpm (Primary); 30.0 gpm (Secondary)
Max. Head
19.0 ft (Primary); 22.0 ft (Secondary)
GPH of Water @ 5 Ft. of Head
2580 (Primary), 2340 (Secondary)
Duty
Continuous (Primary), Intermittent (Secondary)
GPH of Water @ 15 Ft. of Head
1140 (Primary), 1200 (Secondary)
Pump RPM
1550
Amps
9.7 A
Amps - Pumps
9.70
Max. Flow (GPH) - Pumps
2500
GPM of Water @ 15 Ft. of Head
19 (Primary), 20 (Secondary)
Pump HP
1/3
GPH of Water @ 10 Ft. of Head
2040 (Primary), 1800 (Secondary)
Pump Body Material
Cast Iron (Primary), Plastic (Secondary)
Item
Sump/Battery Back-Up System
Off Point
2 in to 5 in
Input Phase AC
1
Outlet
1-1/2" NPT
Switch Type - Pumps
Float
Item - Sump Pumps
Sump/Battery Back-Up System
Impeller Material
Polypropylene (Primary)
Bearing Type
Ball
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
For Use With
Dewatering Systems
On Point
7 1/4 in
Motor Type
Shaded Pole (Primary), Brush Type DC (Secondary)
Max. Flow (GPH) - Back-Up
2340
GPM of Water @ 20 Ft. of Head
12 (Primary), 6 (Secondary)
GPH of Water @ 0 Ft. of Head
2700 (Primary), 2040 (Secondary)
Alarm Duration - Pumps
Continuous
Max. Flow (GPH)
2340
Max. Head (Ft.) - Back-Up
22
Motor RPM
1550
12VDC Battery Charger
10A
Max. Liquid Temp.
130 Degrees F
Alarm Included
Yes
Alarm Output - Pumps
Audible, Phone System, Visual, WiFi
Discharge NPT
1-1/2" F
Voltage - Back-Up
12VDC
Impeller Material - Pumps
Glass Filled Polypropylene
Includes
Battery Box, Battery Charger, Check Valve, Controller with Internet Connection, Installation Hardware Kit
Handle
Yes
Agency Compliance
CSA
Hz
60
GPM of Water @ 10 Ft. of Head
34 (Primary), 30 (Secondary)
Amps - Back-Up
10.00
Base Material
Polypropylene
GPM of Water @ 5 Ft. of Head
43 (Primary), 39 (Secondary)
Voltage - Pumps
12VDC
Max. Head - Pumps
19 ft.
Secondary Pump Maximum Head
22 ft
Secondary Pump Shaft Seal Material
Ceramic
Primary Pump Hz
60
RPM
1,550 RPM
Primary Pump RPM
1,550
Primary Pump Duty Cycle
Continuous
Secondary Pump Flow Rate @ 10 Ft. of Head
30.0 gpm
Discharge
1-1/2 in M PVC Glue
Discharge Gender
Male
Secondary Pump HP
1/3 hp
Primary Pump Phase
Single
Secondary Pump Rated Voltage
12V DC
Secondary Pump Duty Cycle
Intermittent
Secondary Pump Amps
10
Primary Pump Rated Voltage
120V AC
Secondary Pump Body Material
Plastic
Flow Rate @ 15 Ft. of Head
19.0 gpm (Primary); 20.0 gpm (Secondary)
Primary Pump Flow Rate @ 5 Ft. of Head
43.0 gpm
Primary Pump Flow Rate @ 10 Ft. of Head
34.0 gpm
Flow Rate @ 5 Ft. of Head
43.0 gpm (Primary); 39.0 gpm (Secondary)
Primary Pump Body Material
Cast Iron
Secondary Pump Flow Rate @ 15 Ft. of Head
20.0 gpm
Secondary Pump Flow Rate @ 5 Ft. of Head
39.0 gpm
Primary Pump Amps
9.7
Alarm Application
Indoor
Primary Pump Flow Rate @ 15 Ft. of Head
19.0 gpm
Primary Pump Impeller Material
Glass Filled Polypropylene
Primary Pump Maximum Head
19 ft
Duty Cycle
Continuous; Intermittent
Primary Pump Shaft Seal Material
Nitrile Rubber
Switch Electrical Connection
Integral, Piggyback
Primary Pump HP
3/10 hp
Discharge Standard
PVC Glue
Secondary Pump Switch Actuation
Vertical Float
Primary Pump Speed
1,550 RPM
Feet of Head - Maximum
19.0 ft (Primary); 22.0 ft (Secondary)
Alert Messaging
Email, Mobile App, Text
Secondary Pump Horsepower
1/3 hp
Primary Pump Switch Actuation
Vertical Float
Primary Pump Switch Electrical Connection
Integral
Connectivity
Wi-Fi
Primary Pump Current
9.7 A
Secondary Pump Flow Rate @ 10 ft of Head
30 gpm
Secondary Pump Current
10 A
Alerts Indicated
Continuous Run, High Control Voltage, High Water, Power Outage, Pump Contactor Failure, Pump End of Lifecycle, Pump Fail to Run, Seal Failure
Alert Output
Audio, Visual
Primary Pump Horsepower
3/10 hp
Primary Pump Flow Rate @ 10 ft of Head
34 gpm
Includes Alarm
Alarm Included
Series
Aquanot
Primary Pump Frequency
60 Hz
For Media Type
Clear Water
Power Source
Corded Electric
Standards
CSA
Liquid Temperature - Maximum
130 Degrees F

Description

Sump/Battery Back-Up System

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
