  11. 1-1/2" FNPT x MNPT Brass Ball Valve Inline
Zoro Select 1-1/2" FNPT x MNPT Brass Ball Valve Inline 107-327 - main

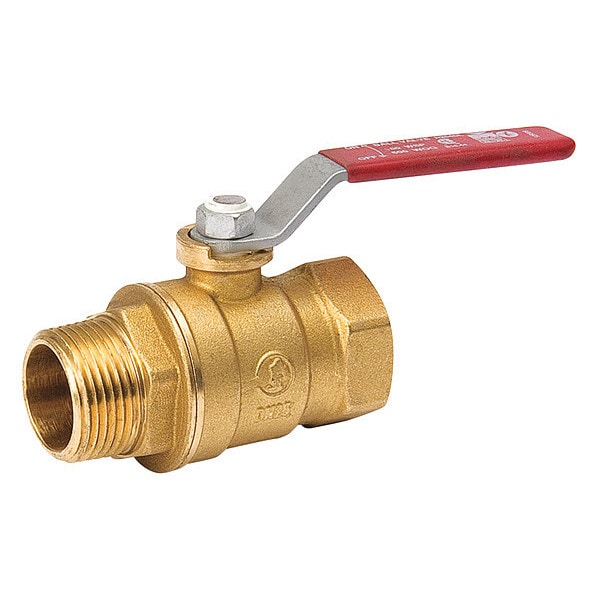

1-1/2" FNPT x MNPT Brass Ball Valve Inline

  • Mfr # 107-327

  • Zoro # G2561517

product price: $62.95
/ea

Key Features

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
107-327
Zoro #
G2561517
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1 1/2 in
Overall Length
7.85 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 1
1 1/2 in
Connection Size - Side 2
1 1/2 in

Details

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x MNPT
Item
Ball Valve
Max. Pressure
900 PSI CWP
Seat Material
PTFE
Temp. Range
-20 Degrees to 300 Degrees F
Standards
ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT
Handle Material
Chrome Plated Steel with Vinyl Grip
Ball Valve Product Group
Manual
Hose I.D.
1 1/2 in
Handle Type
Lever
Body Material
Brass
Stem Material
Brass
Stem Type
Blowout Proof
Seal Material
PTFE
Type
Two Piece
Connection Type - Side 1
IPS
Handle - Locking
Non-Locking
Connection Type - Side 2
IPS
Connection Gender - Side 1
Male
3-A Standard Compliance
Not Rated
Maximum Pressure - Steam
600 PSI CWP
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Vented Ball Valve
Non-Vented
Color - Valve Handle
Red
Connection Gender - Side 2
Female
Coefficient of Volume (Cv)
13.349
Vacuum Service Rating
-29.92 in Hg
Operating Temperature - Maximum
300 Degrees F
Valve Series
7700MF

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material 304 Stainless Steel, Ball Port Style Standard Port

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
