Zoro Select 1-1/4" FNPT Brass Ball Valve Inline G-F600-125LH - main

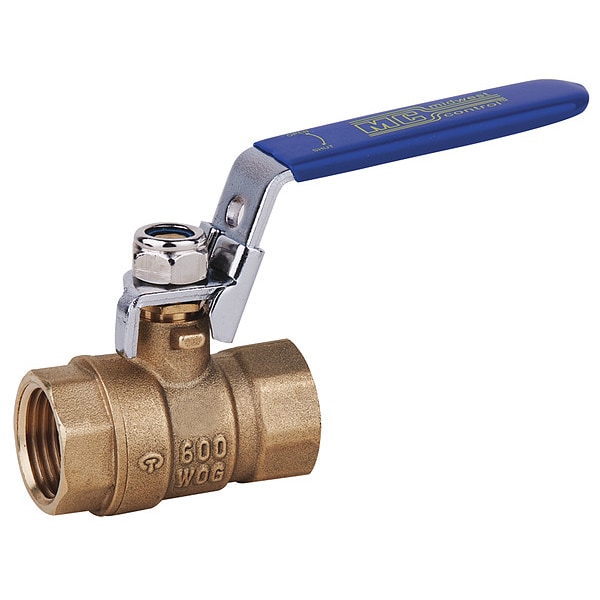

1-1/4" FNPT Brass Ball Valve Inline

  • Mfr # G-F600-125LH

  • Zoro # G4448832

product price: $29.99
/ea

Key Features

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G-F600-125LH
Zoro #
G4448832
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
1 1/4 in
Overall Length
4.16 in
Connection Size - Side 1
1 1/4 in
Nominal Valve Size
1 1/4 in
Connection Size - Side 2
1 1/4 in

Details

Ball Material
Chrome Plated Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Air, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Body Material
Brass
Stem Material
Brass
Temp. Range
0 Degrees to 350 Degrees F
Max. Pressure
600 PSI CWP
Ball Valve Product Group
Manual
Standards
ANSI B1.20.3
Seat Material
PTFE
Handle Material
Chrome Plated Steel
Stem Type
Blowout Proof
Handle Type
Lever
Seal Material
PTFE
Type
Locking Handle
Connection Gender - Side 2
Female
Maximum Pressure - Combustible Gas
Not Rated
Operating Temperature - Maximum
350 Degrees F
Handle - Locking
Locking
Operating Temperature - Minimum
0 Degrees F
Maximum Pressure - Steam
150 PSI WSP
Vacuum Service Rating
29 in Hg
Color - Valve Handle
Blue
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
84.42
Vented Ball Valve
Non-Vented
Connection Type - Side 1
NPT

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 1 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Lever

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
