  11. 3/8 in Ball Valve, Stainless Steel, FNPT, Inline
Shop All Ball Valves
Zoro Select

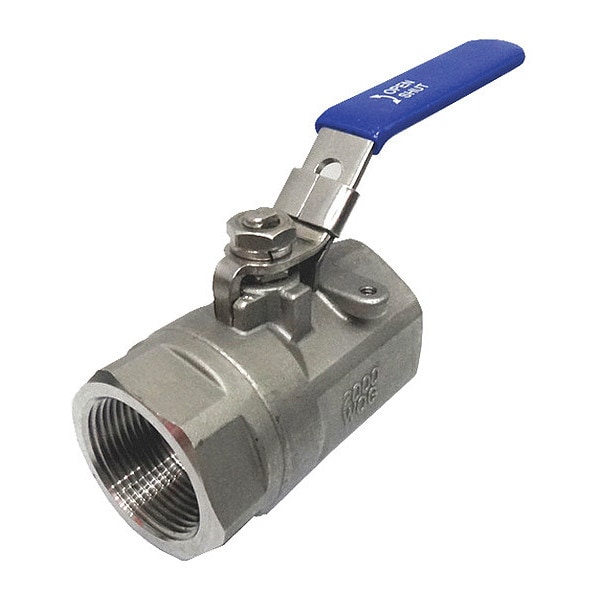

3/8 in Ball Valve, Stainless Steel, FNPT, Inline

product price: $29.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material 316 Stainless Steel
  • Connectoin Type FNPT x FNPT
  • Body Style Inline
  • Valve Design 2-Piece
  • Max. Pressure 1000 psi CWP
See all product information

Product Information

Dimensions

Pipe Size 3/8"
Overall Length 2.03 in
Nominal Valve Size 3/8 in
Connection Size - Side 1 3/8 in
Connection Size - Side 2 3/8 in
Handle Length 4.09 in

Details

Body Material 316 Stainless Steel
Connectoin Type FNPT x FNPT
Body Style Inline
Valve Design 2-Piece
Max. Pressure 1000 psi CWP
Temp. Range -25 Degrees to 450 Degrees F
Port Full
Item Ball Valve
Handle Type Locking Lever
Stem Material 316 Stainless Steel
Standards ASTM A351-CF8M
Seat Material PTFE
Valve Structure 2-Piece
Ball Material 316 stainless steel
Handle Material Stainless Steel with Vinyl Grip
Stem Type Blowout Proof
Connection Type FNPT x FNPT
Ball Valve Basic Body Material Stainless Steel
Ball Valve Product Group Manual
Seal Material PTFE
Type Two Piece
Connection FNPT
Material of Construction 316 Stainless Steel
Sub-Category Steel Ball Valves
Connection Type - Side 2 NPT
Operating Temperature - Minimum -25 Degrees F
Handle - Locking Locking
Maximum Pressure - Combustible Gas Not Rated
Connection Type - Side 1 NPT
Maximum Pressure - Steam 1,000 psi
Maximum Pressure - Operating 1,000 psi
Valve Construction Two-Piece
Connection Gender - Side 2 Female
For Media Combustible Gases, Water
Color - Valve Handle Yellow
Valve Body Style Straight
Vented Ball Valve Non-Vented
Valve Ways 2-Way
Connection Gender - Side 1 Female
Ball Port Style Full Port
3-A Standard Compliance Not Rated
Operating Temperature - Maximum 450 Degrees F

Description

Manual Two-Way Ball Valve, Body Material 316 Stainless Steel, For Media Combustible Gases, Water, Valve Construction Two-Piece, Nominal Valve Size 3/8 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 1,000 psi, Maximum Pressure - Steam 1,000 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Applicable, Ball Material 316 Stainless Steel, Ball Port Style Full Port
