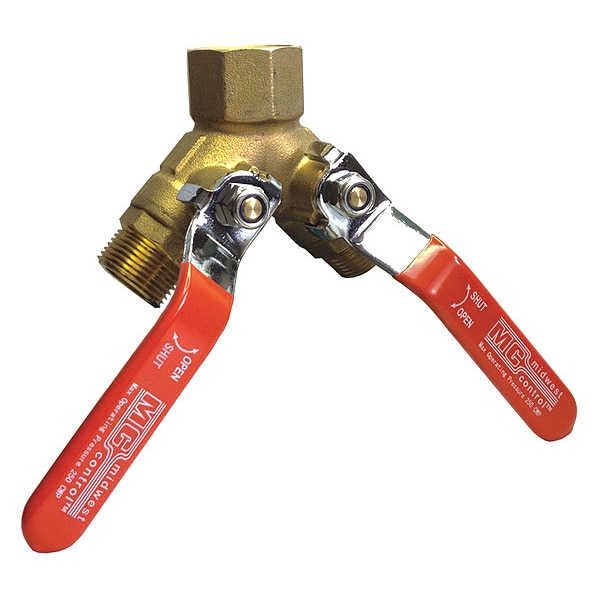

1" x 3/4" FNPT x MNPT x MNPT Brass Ball Valve 3-Way

product price: $46.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1" x 3/4"
  • Body Material Brass
  • Body Style 3-Way
  • Ball Valve Basic Body Material Brass
  • Ball Valve Product Group Manual
See all product information

Product Information

Dimensions

Pipe Size 1" x 3/4"
Inlet Connection Size 1 in
Outlet Connection Size - Side 1 3/4 in
Outlet Connection Size - Side 2 3/4 in
Nominal Valve Size 1 in

Details

Body Material Brass
Body Style 3-Way
Ball Valve Basic Body Material Brass
Ball Valve Product Group Manual
Handle Material Chrome-Plated Steel with Vinyl Grip
Temp. Range -40 Degrees to 350 Degrees F
Port Standard
Body Seal Material PTFE
Stem Material brass
Max. Pressure 600 psi CWP
Item Ball Valve
Seat Material PTFE
Connection Type FNPT x MNPT x MNPT
Valve Structure 2-Piece
Stem Type Blowout Proof
Ball Material Chrome Plated Brass
Features Vented Ball Safety Exhaust
Handle Type Lever
Standards ASTM A351, MSS SP-110
Seal Material RPTFE
Type Two Piece, Three Way
Connection FNPT x MNPT
Special Features Drain Port
Material of Construction Forged Brass
Sub-Category Brass Ball Valves
Handle - Locking Non-Locking
Ball Port Style Standard Port
3-A Standard Compliance Not Rated
Outlet Connection Type - Side 1 NPT
Outlet Connection Gender - Side 2 Male
Outlet Connection Gender - Side 1 Male
Maximum Pressure - Steam 150 psi
Operating Temperature - Maximum 350 Degrees F
Vented Ball Valve Vented
Color - Valve Handle Orange
Outlet Connection Type - Side 2 NPT
Inlet Connection Entry Side
Maximum Pressure - Combustible Gas Not Rated
For Media Water
Operating Temperature - Minimum -40 Degrees F
Inlet Connection Type NPT
Inlet Connection Gender Female
Valve Construction Two-Piece
Valve Ways 3-Way
Coefficient of Volume (Cv) 30
Maximum Pressure - Operating 600 psi
Vacuum Service Rating 29.9 in Hg

Description

Manual Three-Way Ball Valve, Body Material Brass, Valve Construction Two-Piece, Average Surface Roughness (Ra) Not Applicable, 3-A Standard Compliance Not Rated, Ball Port Style Standard Port, Nominal Valve Size 1 in, Inlet Connection Size 1 in, Inlet Connection Gender Female, Inlet Connection Type NPT, Inlet Connection Entry Side, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 3/4 in, Outlet Connection Gender - Side 1 Male, Handle Material Chrome-Plated Carbon Steel

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
