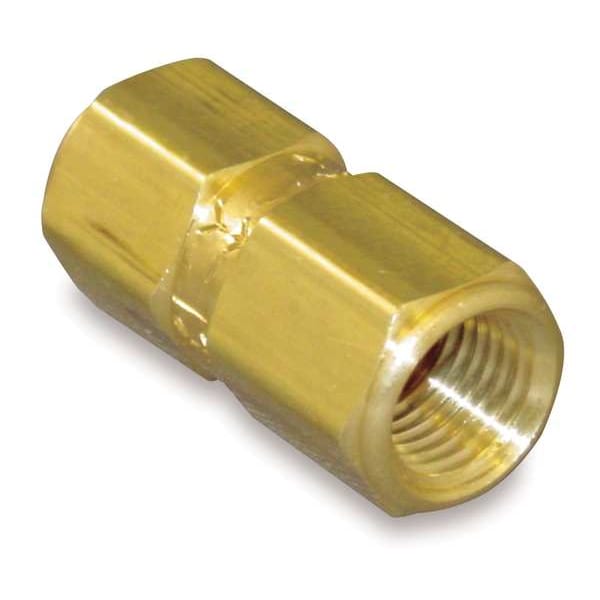

1/4" FNPT Brass Poppet Spring Check Valve

  • Mfr # CHK BRS 450-4F4F-B
  • Zoro # G1580521
product price:
$
21.19
/ea

Key Features

Pipe Size
1/4"
Hex Size
11/16 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 450-4F4F-B
Zoro #
G1580521
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
11/16 in
Pipe or Tube Size - Check Valves
1/4 in
Size
1/4"
Width
11/16 in
Length
1 1/2 in
Overall Height
11/16 in
Overall Length
1.5 in
Pipe or Tube Size
1/4 in
Connection Size - Side 1
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 2
1/4 in
Height - Cap to Inlet Center
7 7/16 in
Wire Rope Length
1.5 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Body Material - Valves
Brass
Item
Poppet Spring Check Valve
Max. Pressure
1200 psi
Max. Steam Pressure - Valves
Not Rated
Seat Material - Check Valves
Brass
Item - Check Valves
Check Valve
Seal Material
Buna-N
Seat Material
Brass
Application - Valves
General Purpose
Flow Design
Single
Max. Temp. - Valves
180 Degrees F
Cap to Inlet Center
7 13/32 in
Mounting Orientation - Check Valves
Horizontal, Vertical
Min. Temp. - Valves
-20 Degrees F
Max. Water Pressure
1200 psi
Max. Water Pressure - Valves
1200 psi
Sub-Category
Brass
Cracking Pressure
1 psi
Connection Type - Check Valves
FNPT x FNPT
Mounting Position
Vertical or Horizontal
Max. Temp.
250 Degrees F
Spring Material - Check Valves
Stainless Steel
Cracking Pressure - Check Valves
1.0 psi
Full Flow - Valves
Yes
Seal Material - Check Valves
Buna-N
Material of Construction
Brass
Mechanism and Body Design
Inline Poppet
Spring Material
Stainless Steel
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Poppet Design
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Check Mechanism
Poppet
Operating Temperature - Minimum
-20 Degrees F
Silent Check
Standard
Connection Gender - Side 1
Female
For Media
Water
Connection Type - Side 2
NPT
Connection Gender - Side 2
Female
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
1,200 psi
Valve Series
450

Description

Zoro Select 450 series poppet spring check valve with an inline brass body and 1/4 in. FNPT x FNPT connections. This valve for water service is specified for water service and has a spring-loaded poppet configuration for one-way flow applications. Its full-flow design, 1 psi cracking pressure, and horizontal or vertical mounting options support use in fluid handling systems requiring one-way flow control.

Key Features:

  • Poppet spring check valve with inline body design for one-way flow control
  • Brass body, brass seat, stainless steel spring, and Buna-N seal
  • 1/4 in. female NPT connections on both ends
  • Cracking pressure: 1 psi
  • Maximum water pressure: 1200 psi
  • Operating temperature range: -20°F to 180°F
  • Full-flow design
  • Mounting orientation: horizontal or vertical
  • Overall length: 1 1/2 in.
  • Standards: UL, UR
