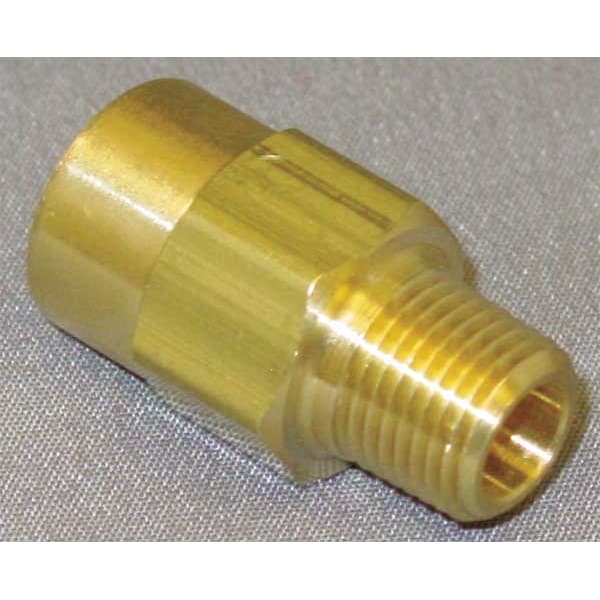

1/2" MNPT x FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 810-8M8F-B

  • Zoro # G0831345

product price:
$
33.29
/ea

Key Features

Pipe Size
1/2"
Hex Size
1 in
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 810-8M8F-B
Zoro #
G0831345
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2"
Hex Size
1 in
Length
1.88"
Overall Height
1"
Pipe or Tube Size - Check Valves
1/2"
Size
1/2"
Width
1"
Overall Length
1.88 in
Pipe or Tube Size
1/2 in
Nominal Valve Size
1/2 in
Height - Cap to Inlet Center
7 7/16 in
Connection Size - Side 2
1/2 in
Connection Size - Side 1
1/2 in
Wire Rope Length
1.88 in

Details

Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
Min. Temp. - Valves
-20 Degrees F
Seat Material - Check Valves
Brass
Application - Valves
General Purpose
Connection Type - Check Valves
MNPT x FNPT
Seal Material - Check Valves
Buna-N
Body Material - Valves
Brass
Spring Material - Check Valves
Stainless Steel
Material of Construction
Brass
Mounting Orientation - Check Valves
Horizontal, Vertical
Item - Check Valves
Check Valve
Seat Material
Brass
Seal Material
Buna-N
Sub-Category
Brass
Spring Material
Stainless Steel
Max. Temp.
250 Degrees F
Max. Water Pressure - Valves
500 psi
Flow Design
Single
Cracking Pressure - Check Valves
1.000 psi
Mechanism and Body Design
Inline Piston
Mounting Position
Vertical or Horizontal
Full Flow - Valves
Yes
Item
Piston Spring Check Valve
Max. Water Pressure
500 psi
Cap to Inlet Center
7-13/32"
Cracking Pressure
1 psi
Max. Steam Pressure - Valves
Not Rated
Max. Pressure
500 psi
Max. Temp. - Valves
180 Degrees F
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Connection Gender - Side 1
Male
Connection Type - Side 1
NPT
Valve Body Style
Inline
For Media
Air, Fluids
Check Mechanism
Piston
Vacuum Service Rating
Not Rated
Connection Type - Side 2
NPT
Coefficient of Volume (Cv)
2.2
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Connection Gender - Side 2
Female
Maximum Pressure - Operating
500 psi
Operating Temperature - Maximum
180 Degrees F
Silent Check
Standard
Maximum Pressure - Steam
Not Rated
Check Mechanism Material
Brass
Valve Series
810

Description

ZORO SELECT 810 series check valve is an inline piston spring check valve for general-purpose air and fluid service. Its spring-loaded piston permits flow in one direction and closes when flow slows or reverses for check-valve operation. This brass valve has a 1/2 in nominal size with MNPT x FNPT threaded connections, a 1 psi cracking pressure, and a full-flow design.

Key Features:

  • Valve type: Piston spring check valve with inline body design and single flow path.
  • Body and internals: Brass body, brass check mechanism, brass seat, Buna-N seal, and stainless steel spring.
  • Connections: 1/2 in male NPT x female NPT.
  • Pressure rating: 500 psi maximum operating pressure and maximum water pressure.
  • Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature.
  • Flow characteristics: Full-flow design with a Cv of 2.2.
  • Mounting orientation: Horizontal or vertical.
  • Dimensions: 1.88 in overall length, 1 in overall height, 1 in overall width, 1 in hex size.
