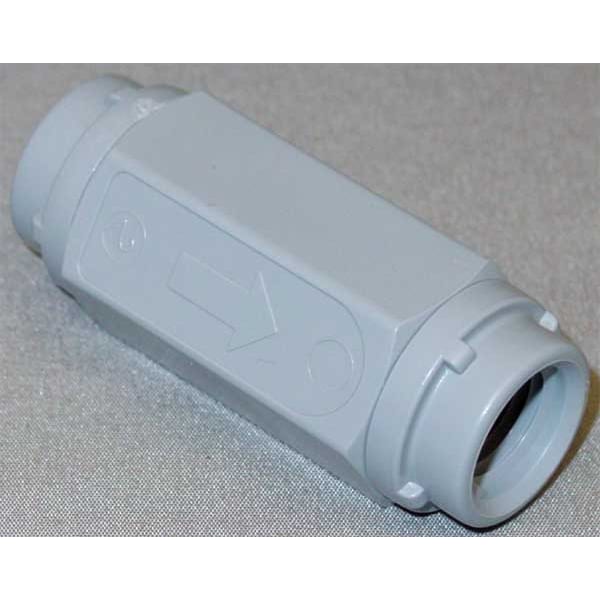

1/4" FNPT Gray PVC Ball Cone Spring Check Valve

  • Mfr # PVC CHK 426-4F4F-B

  • Zoro # G1117566

product price:
$
19.89
/ea

Key Features

Pipe Size
1/4"
Hex Size
1 in
Connection Type
FNPT
Connection
FNPT
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PVC CHK 426-4F4F-B
Zoro #
G1117566
UPC #
-
Country of Origin
Mexico

Dimensions

Pipe Size
1/4"
Hex Size
1 in
Overall Height
1"
Width
0.88"
Size
1/4"
Pipe or Tube Size - Check Valves
1/4"
Length
2.20"
Overall Length
2.99 in
Pipe or Tube Size
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 2
1/4 in
Connection Size - Side 1
1/4 in
Wire Rope Length
2.99 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
PVC
Seat Material - Check Valves
PVC
Flow Design
Single
Seal Material
Buna-N
Sub-Category
PVC
Max. Water Pressure
125 psi
Spring Material
Hastelloy
Cracking Pressure
1 psi
Spring Material - Check Valves
Stainless Steel
Item
Ball Cone Spring Check Valve
Item - Check Valves
Check Valve
Full Flow - Valves
Yes
Application - Valves
General Purpose
Seat Material
PVC
Cracking Pressure - Check Valves
1.000 psi
Max. Pressure
125 psi
Body Material - Valves
PVC
Mechanism and Body Design
Inline Ball Cone
Connection Type - Check Valves
FNPT x FNPT
Max. Water Pressure - Valves
125 psi
Seal Material - Check Valves
Buna-N
Mounting Position
Vertical or Horizontal
Max. Temp. - Valves
140 Degrees F
Min. Temp. - Valves
-20 Degrees F
Material of Construction
PVC
Max. Steam Pressure - Valves
Not Rated
Max. Temp.
140 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Standards
NSF 42
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Ball Cone Design
3-A Standard Compliance
Not Rated
For Media
Chemicals
Maximum Pressure - Steam
Not Rated
Connection Type - Side 2
NPT
Vacuum Service Rating
Not Rated
Maximum Pressure - Operating
125 psi
Check Mechanism Material
Stainless Steel
Operating Temperature - Minimum
-20 Degrees F
Valve Body Style
Inline
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT
Silent Check
Standard
Check Mechanism
Ball
Operating Temperature - Maximum
140 Degrees F
Connection Gender - Side 2
Female
Valve Series
426

Description

ZORO SELECT 426 series ball cone spring check valve is an inline, single-flow check valve with a PVC body and 1/4 in FNPT x FNPT female connections. It uses a spring-loaded ball check mechanism intended to permit flow in one direction and restrict reverse flow. This valve is specified for general-purpose chemical service within listed pressure and temperature ratings and has a full-flow designation and listed dimensions of 2.99 in overall length, 1 in overall height, and 0.88 in width.

Key Features:

  • Valve type: Ball cone spring check valve with inline body design.
  • Body material: PVC.
  • Check mechanism: Ball with stainless steel components.
  • Connections: 1/4 in FNPT x FNPT, female on both ends.
  • Cracking pressure: 1 psi.
  • Pressure rating: 125 psi maximum operating pressure; 125 psi maximum water pressure.
  • Temperature range: -20 degrees F to 140 degrees F.
  • Seal material: Buna-N; seat material: PVC.
  • Spring material: Hastelloy.
  • Mounting orientation: Horizontal or vertical.
  • Body style: Inline; full-flow designation: Yes.
  • Standards: NSF 42.
  • Dimensions: 2.99 in overall length, 1 in overall height, 0.88 in width, 2.20 in body length, 1 in hex size.
