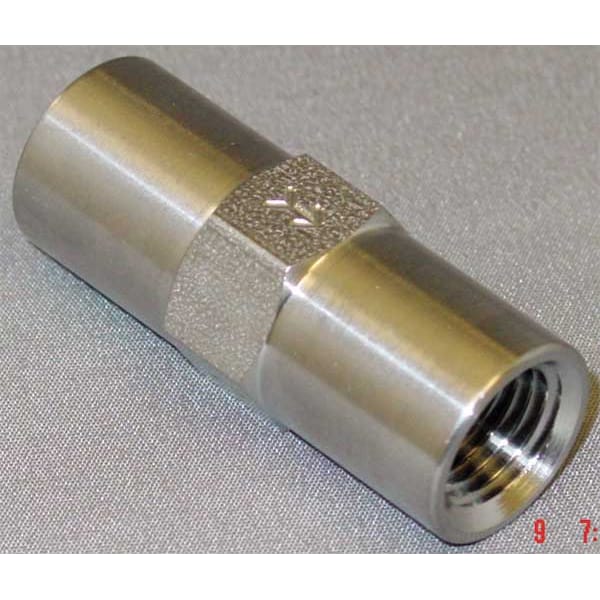

1/4" FNPT Stainless Steel Piston Spring Check Valve

  • Mfr # CHK SST 415-4F4F-B
  • Zoro # G0525481
product price:
$
65.29
/ea

Key Features

Pipe Size
1/4"
Hex Size
11/16 in
Connection Type
FNPT
Connection
FNPT
Body Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK SST 415-4F4F-B
Zoro #
G0525481
UPC #
-
Country of Origin
United States
Connection Type
FNPT
Connection
FNPT
Body Material
Stainless Steel
Seat Material - Check Valves
Stainless Steel
Item
Piston Spring Check Valve
Seal Material - Check Valves
Buna-N
Max. Water Pressure - Valves
500 psi
Mounting Position
Vertical or Horizontal
Material of Construction
stainless steel
Min. Temp. - Valves
-20 Degrees F
Body Material - Valves
Stainless Steel
Connection Type - Check Valves
FNPT x FNPT
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Temp. - Valves
180 Degrees F
Flow Design
Single
Cracking Pressure - Check Valves
1.0 psi
Item - Check Valves
Check Valve
Spring Material - Check Valves
Stainless Steel
Max. Water Pressure
500 psi
Cracking Pressure
1 psi
Max. Steam Pressure - Valves
Not Rated
Max. Temp.
180 Degrees F
Full Flow - Valves
Yes
Mechanism and Body Design
Inline Piston
Max. Pressure
500 psi
Application - Valves
General Purpose
Seal Material
Buna-N
Cap to Inlet Center
10 1/16 in
Seat Material
Stainless Steel
Sub-Category
Stainless Steel
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
1.2
Maximum Pressure - Steam
Not Rated
For Media
Air, Fluids
Connection Gender - Side 2
Female
3-A Standard Compliance
Not Rated
Operating Temperature - Minimum
-20 Degrees F
Check Mechanism Material
Stainless Steel
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
500 psi
Vacuum Service Rating
Not Rated
Connection Type - Side 2
NPT
Silent Check
Standard
Check Mechanism
Piston
Valve Body Style
Inline
Valve Series
415

Description

Zoro Select 415 Series piston spring check valve for general-purpose air and fluid service. This inline valve features a stainless steel body with 1/4 in. FNPT x FNPT female threaded connections and a spring-loaded stainless steel piston check mechanism, single-flow design, and 1 psi cracking pressure for applications requiring resistance to reverse flow in piping systems. The valve can be mounted horizontally or vertically.

Key Features:

  • Valve type: Piston spring check valve with inline piston design
  • Body material: Stainless steel
  • Connection size and type: 1/4 in. FNPT x FNPT, female x female
  • Flow design: Single; full flow: Yes
  • For media: Air, fluids
  • Cracking pressure: 1 psi
  • Maximum operating pressure: 500 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Seal material: Buna-N
  • Seat material: Stainless steel
  • Check mechanism material: Stainless steel
  • Spring material: Stainless steel
  • Mounting orientation: Horizontal, vertical
  • Valve series: 415
  • Overall length: 1.8 in.
  • Standards: UL, UR
