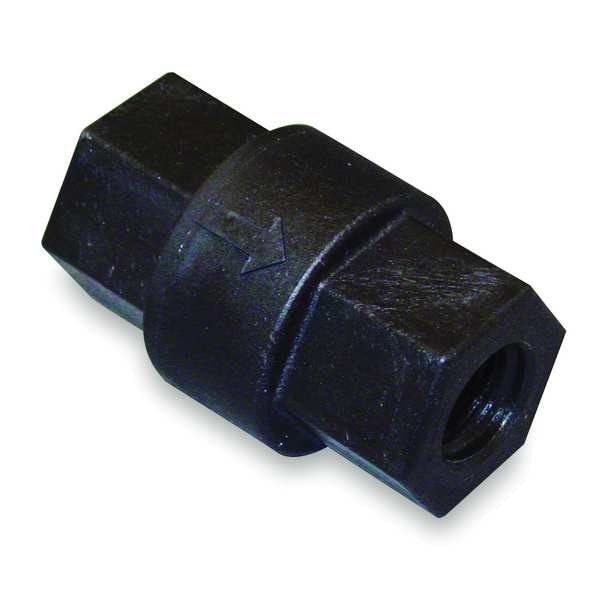

1/4" FNPT Ball Cone Spring Check Valve

  • Mfr # FP CHK 694-4F4F-B
  • Zoro # G0715434
product price:
$
16.19
/ea

Key Features

Pipe Size
1/4"
Hex Size
1 15/64"
Connection Type
FNPT
Connection
FNPT
Body Material
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FP CHK 694-4F4F-B
Zoro #
G0715434
UPC #
-
Country of Origin
United States
Connection Type
FNPT
Connection
FNPT
Body Material
Polypropylene
Max. Temp.
140 Degrees F
Min. Temp. - Valves
-20 Degrees F
Spring Material - Check Valves
Stainless Steel
Seat Material - Check Valves
Glass Filled Polypropylene
Material of Construction
Glass Filled Polypropylene
Item
Ball Cone Spring Check Valve
Item - Check Valves
Check Valve
Seat Material
Glass Filled Polypropylene
Application - Valves
General Purpose
Seal Material - Check Valves
Buna-N
Full Flow - Valves
Yes
Seal Material
Buna-N
Connection Type - Check Valves
FNPT x FNPT
Max. Steam Pressure - Valves
Not Rated
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Water Pressure - Valves
125 psi
Body Material - Valves
Glass Filled Polypropylene
Flow Design
Single
Sub-Category
Polypropylene
Spring Material
Stainless Steel
Max. Temp. - Valves
140 Degrees F
Cracking Pressure
0.33 psi
Cracking Pressure - Check Valves
0.33 psi
Mechanism and Body Design
Inline Ball Cone
Max. Water Pressure
125 psi
Mounting Position
Vertical or Horizontal
Max. Pressure
125 psi
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Ball Cone Design
Connection Gender - Side 1
Female
Valve Body Style
Inline
Silent Check
Standard
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Maximum Pressure - Operating
125 psi
Connection Type - Side 2
NPT
Coefficient of Volume (Cv)
2.3
Connection Gender - Side 2
Female
For Media
Air, Fluids
Check Mechanism
Poppet
Operating Temperature - Maximum
140 Degrees F
Valve Series
694

Description

ZORO SELECT Series 694 ball cone spring check valve is an inline, single-flow check valve for general-purpose air and fluid service. It uses a spring-loaded poppet-style check mechanism intended for one-way flow applications and closure when flow stops or reverses. This 1/4 in. valve has FNPT x FNPT connections, a glass-filled polypropylene body and seat, and a Buna-N seal in a compact 1 in. long design.

Key Features:

  • Ball cone spring check valve with inline body style and single-flow design
  • 1/4 in. FNPT x FNPT connections with female threads on both ends
  • Glass-filled polypropylene body and seat
  • Buna-N seal
  • Poppet check mechanism
  • Stainless steel spring
  • 0.33 psi cracking pressure
  • 125 psi maximum operating pressure
  • Temperature range: -20 degrees F to 140 degrees F
  • Horizontal or vertical mounting orientation
  • Cv 2.3 flow capacity
  • Full-flow design
  • Overall size: 1 in. length; 1 15/64 in. height and width
