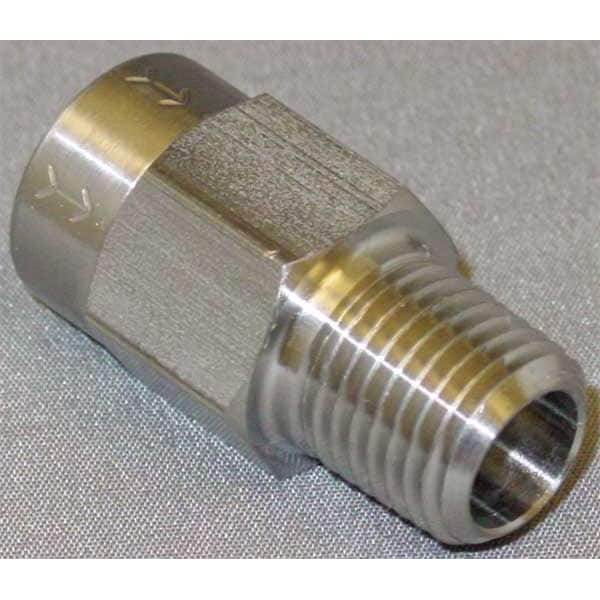

1/4" FNPT x MNPT Stainless Steel Piston Spring Check Valve

  • Mfr # CHK SST 410-4F4M-B
  • Zoro # G3456966
product price:
$
42.69
/ea

Key Features

Pipe Size
1/4"
Hex Size
19/32"
Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK SST 410-4F4M-B
Zoro #
G3456966
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
19/32"
Length
1.38"
Overall Height
19/32"
Pipe or Tube Size - Check Valves
1/4"
Size
1/4"
Width
0.69"
Overall Length
1.38 in
Pipe or Tube Size
1/4 in
Connection Size - Side 2
1/4 in
Connection Size - Side 1
1/4 in
Nominal Valve Size
1/4 in
Height - Cap to Inlet Center
7 7/16 in
Wire Rope Length
1.38 in

Details

Connection Type
FNPT x MNPT
Connection
FNPT x MNPT
Body Material
Stainless Steel
Material of Construction
stainless steel
Seal Material - Check Valves
Buna-N
Mechanism and Body Design
Inline Piston
Connection Type - Check Valves
MNPT x FNPT
Seat Material - Check Valves
Stainless Steel
Seat Material
Stainless Steel
Max. Pressure
500 psi
Max. Water Pressure - Valves
500 psi
Application - Valves
General Purpose
Min. Temp. - Valves
-20 Degrees F
Body Material - Valves
Stainless Steel
Seal Material
Buna-N
Max. Steam Pressure - Valves
Not Rated
Flow Design
Single
Full Flow - Valves
Yes
Max. Temp. - Valves
180 Degrees F
Cracking Pressure
1 psi
Mounting Position
Vertical or Horizontal
Max. Temp.
180 Degrees F
Spring Material - Check Valves
Stainless Steel
Max. Water Pressure
500 psi
Cracking Pressure - Check Valves
1.000 psi
Cap to Inlet Center
7-13/32"
Item - Check Valves
Check Valve
Sub-Category
Stainless Steel
Mounting Orientation - Check Valves
Horizontal, Vertical
Item
Piston Spring Check Valve
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Maximum Pressure - Operating
500 psi
Vacuum Service Rating
Not Rated
Connection Type - Side 1
NPT
Connection Gender - Side 2
Male
Operating Temperature - Minimum
-20 Degrees F
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
0.6
Connection Type - Side 2
NPT
Check Mechanism Material
Stainless Steel
For Media
Air, Fluids
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Connection Gender - Side 1
Female
Operating Temperature - Maximum
180 Degrees F
Check Mechanism
Piston
Silent Check
Standard
Valve Series
410

Description

ZORO SELECT Series 410 is an inline piston spring check valve for general-purpose air and fluid service. This 1/4 in. valve uses a spring-loaded piston configured for one-way flow applications and reverse-flow closure. It features a stainless steel body and internal components, a Buna-N seal, and 1 psi cracking pressure for backflow control applications in compatible piping systems. The valve is rated for horizontal or vertical mounting and has a temperature rating of -20 to 180 Degrees F.

Key Features:

  • Valve type: Piston spring check valve with inline body and single-flow design.
  • Size and connections: 1/4 in. FNPT x MNPT threaded connections; side 1 female NPT, side 2 male NPT.
  • Materials: Stainless steel body, stainless steel check mechanism, stainless steel seat, and stainless steel spring.
  • Seal material: Buna-N.
  • Cracking pressure: 1 psi.
  • Pressure rating: 500 psi maximum operating pressure and 500 psi maximum water pressure.
  • Temperature range: -20 Degrees F minimum to 180 Degrees F maximum.
  • Flow characteristics: Cv 0.6.
  • Mounting orientation: Horizontal or vertical.
  • Dimensions: 1.38 in. overall length, 0.69 in. width, 19/32 in. overall height; 19/32 in. hex size.
  • Standards: UL, UR.
