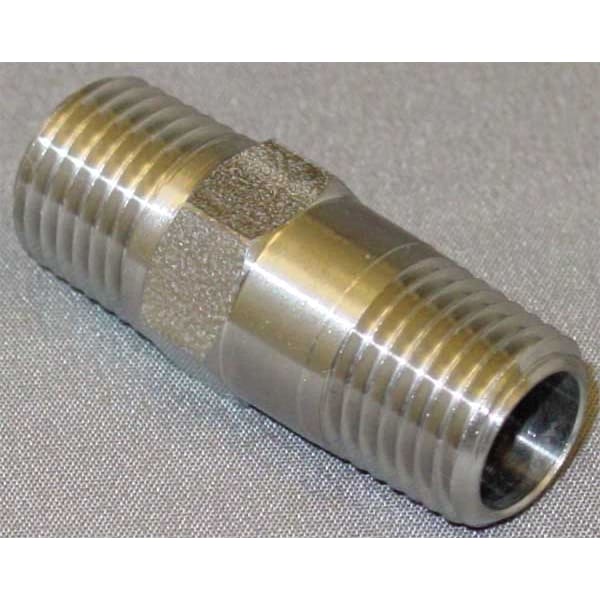

1/4" MNPT Stainless Steel Piston Spring Check Valve

  • Mfr # CHK SST 410-4M4M-B

  • Zoro # G0950975

product price:
$
41.79
/ea

Key Features

Pipe Size
1/4"
Hex Size
9/16 in
Connection Type
MNPT x MNPT
Connection
MPT
Body Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CHK SST 410-4M4M-B
Zoro #
G0950975
UPC #
-
Country of Origin
United States
Connection Type
MNPT x MNPT
Connection
MPT
Body Material
Stainless Steel
Item - Check Valves
Check Valve
Mounting Position
Vertical or Horizontal
Max. Water Pressure - Valves
500 psi
Max. Pressure
500 psi
Cracking Pressure
1 psi
Full Flow - Valves
Yes
Seal Material - Check Valves
Buna-N
Spring Material - Check Valves
Stainless Steel
Max. Steam Pressure - Valves
Not Rated
Body Material - Valves
Stainless Steel
Application - Valves
General Purpose
Seal Material
Buna-N
Connection Type - Check Valves
MNPT x MNPT
Item
Piston Spring Check Valve
Seat Material - Check Valves
Stainless Steel
Mechanism and Body Design
Inline Piston
Max. Water Pressure
500 psi
Cracking Pressure - Check Valves
1.000 psi
Max. Temp. - Valves
180 Degrees F
Cap to Inlet Center
7 13/32 in
Min. Temp. - Valves
-20 Degrees F
Max. Temp.
180 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Material of Construction
stainless steel
Spring Material
Stainless Steel
Seat Material
Stainless Steel
Flow Design
Single
Sub-Category
Stainless Steel
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Connection Type - Side 2
NPT
Check Mechanism
Piston
Check Mechanism Material
Stainless Steel
Maximum Pressure - Operating
500 psi
Valve Body Style
Inline
Connection Type - Side 1
NPT
Silent Check
Standard
3-A Standard Compliance
Not Rated
For Media
Air, Fluids
Connection Gender - Side 2
Male
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
Not Rated
Connection Gender - Side 1
Male
Coefficient of Volume (Cv)
0.6
Vacuum Service Rating
Not Rated
Operating Temperature - Maximum
180 Degrees F
Valve Series
410

Description

ZORO SELECT Series 410 check valve is an inline piston spring check valve for air and fluid service within the listed material, pressure, and temperature specifications. It uses a spring-loaded piston design to permit flow in one direction and restrict reverse flow. This 1/4 in valve features a stainless steel body, stainless steel internal mechanism, Buna-N seal, and stainless steel seat for systems requiring 1/4 in MNPT x MNPT connections and the listed dimensions.

Key Features:

  • Valve type: Piston spring check valve with inline piston design and single flow path
  • Connections: 1/4 in MNPT x MNPT with male NPT ends on both sides
  • Materials: Stainless steel body, stainless steel check mechanism, stainless steel spring, and stainless steel seat
  • Seal material: Buna-N
  • Cracking pressure: 1 psi
  • Pressure rating: 500 psi maximum operating and water pressure
  • Temperature range: -20 Degrees F to 180 Degrees F
  • Mounting orientation: Horizontal or vertical
  • Flow capacity: Cv 0.6
  • Full flow: Yes
  • Standards: UL, UR
  • Dimensions: 1.38 in overall length; 9/16 in overall height; 9/16 in hex size
