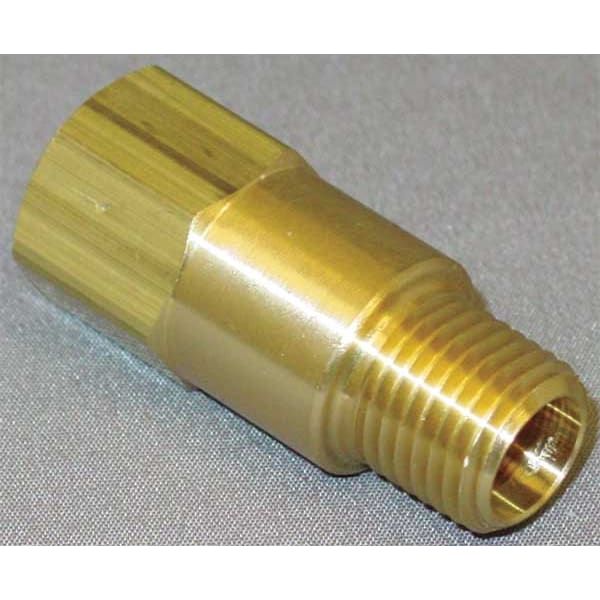

1/4" MNPT x FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 410-4M4F-B
  • Zoro # G0800755
product price:
$
21.79
/ea

Key Features

Pipe Size
1/4"
Hex Size
11/16 in
Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 410-4M4F-B
Zoro #
G0800755
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4"
Hex Size
11/16 in
Width
0.69"
Size
1/4"
Overall Height
11/16"
Pipe or Tube Size - Check Valves
1/4"
Length
1.63"
Overall Length
1.63 in
Pipe or Tube Size
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 2
1/4 in
Connection Size - Side 1
1/4 in
Height - Cap to Inlet Center
5 7/16 in
Wire Rope Length
1.63 in

Details

Connection Type
MNPT x FNPT
Connection
MNPT x FNPT
Body Material
Brass
Item - Check Valves
Check Valve
Cracking Pressure - Check Valves
1.000 psi
Max. Water Pressure
500 psi
Flow Design
Single
Seat Material - Check Valves
Brass
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure
1 psi
Full Flow - Valves
Yes
Material of Construction
Brass
Seal Material - Check Valves
Buna-N
Application - Valves
General Purpose
Max. Temp. - Valves
180 Degrees F
Spring Material - Check Valves
Stainless Steel
Seal Material
Buna-N
Max. Temp.
180 Degrees F
Connection Type - Check Valves
MNPT x FNPT
Body Material - Valves
Brass
Max. Water Pressure - Valves
500 psi
Max. Steam Pressure - Valves
Not Rated
Min. Temp. - Valves
-20 Degrees F
Cap to Inlet Center
5-7/16"
Sub-Category
Brass
Item
Piston Spring Check Valve
Mechanism and Body Design
Inline Piston
Seat Material
Brass
Max. Pressure
500 psi
Mounting Position
Vertical or Horizontal
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
For Media
Air, Fluids
Maximum Pressure - Operating
500 psi
Operating Temperature - Minimum
-20 Degrees F
Check Mechanism Material
Brass
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 2
Female
Silent Check
Standard
Maximum Pressure - Steam
Not Rated
Check Mechanism
Piston
Connection Gender - Side 1
Male
Coefficient of Volume (Cv)
0.6
3-A Standard Compliance
Not Rated
Connection Type - Side 1
NPT
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Connection Type - Side 2
NPT
Valve Series
410

Description

ZORO SELECT Series 410 check valve is an inline piston spring check valve for general-purpose flow control in air and fluid systems. It uses a spring-loaded brass piston and is rated with 1 psi cracking pressure for one-way flow applications. The brass body has 1/4 in. MNPT x FNPT connections and can be mounted horizontally or vertically.

Key Features:

  • Valve type: Piston spring check valve with inline piston design
  • Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
  • Connection size and type: 1/4 in. male NPT x female NPT
  • Pressure rating: 500 psi maximum operating pressure
  • Temperature range: -20 degrees F to 180 degrees F
  • Flow characteristics: Cv 0.6 flow coefficient
  • Mounting orientation: Horizontal or vertical
  • Dimensions: 1.63 in. overall length, 11/16 in. overall height, 11/16 in. hex size
  • Standards: UL, UR
