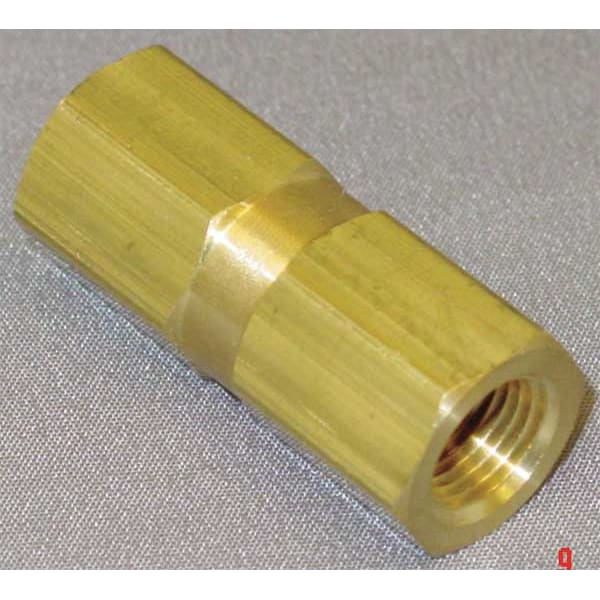

1/8" FNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 215-2F2F-B
  • Zoro # G1818424
product price:
$
20.59
/ea

Key Features

Pipe Size
1/8"
Hex Size
9/16 in
Connection Type
FNPT
Connection
FNPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 215-2F2F-B
Zoro #
G1818424
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/8"
Hex Size
9/16 in
Pipe or Tube Size - Check Valves
1/8 in
Size
1/8"
Length
1 3/8 in
Overall Height
9/16 in
Width
9/16 in
Overall Length
1.38 in
Pipe or Tube Size
1/8 in
Nominal Valve Size
1/8 in
Connection Size - Side 2
1/8 in
Connection Size - Side 1
1/8 in
Height - Cap to Inlet Center
2 15/16 in
Wire Rope Length
1.38 in

Details

Connection Type
FNPT
Connection
FNPT
Body Material
Brass
Spring Material
Stainless Steel
Max. Temp.
180 Degrees F
Item
Piston Spring Check Valve
Min. Temp. - Valves
-20 Degrees F
Body Material - Valves
Brass
Seal Material - Check Valves
Buna-N
Item - Check Valves
Check Valve
Full Flow - Valves
Yes
Seal Material
Buna-N
Mounting Position
Vertical or Horizontal
Seat Material - Check Valves
Brass
Flow Design
Single
Max. Water Pressure
500 psi
Cracking Pressure
1 psi
Spring Material - Check Valves
Stainless Steel
Mechanism and Body Design
Inline Piston
Max. Steam Pressure - Valves
Not Rated
Connection Type - Check Valves
FNPT x FNPT
Application - Valves
General Purpose
Mounting Orientation - Check Valves
Horizontal, Vertical
Material of Construction
Brass
Cap to Inlet Center
2 29/32 in
Max. Pressure
500 psi
Max. Water Pressure - Valves
500 psi
Max. Temp. - Valves
180 Degrees F
Cracking Pressure - Check Valves
1.0 psi
Sub-Category
Brass
Seat Material
Brass
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
Silent Check
Standard
Check Mechanism Material
Brass
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
180 Degrees F
Check Mechanism
Piston
Coefficient of Volume (Cv)
0.6
3-A Standard Compliance
Not Rated
Connection Gender - Side 1
Female
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
Maximum Pressure - Operating
500 psi
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Operating Temperature - Minimum
-20 Degrees F
For Media
Air, Fluids
Valve Series
215

Description

Zoro Select 215 series piston spring check valve with a brass body and 1/8 in FNPT x FNPT female connections. It uses a spring-loaded brass piston and is intended for one-way flow control with compatible air and fluid media, with a 1 psi cracking pressure. The valve is rated for horizontal or vertical mounting and features a Cv 0.6 flow capacity and 1.38 in overall length.

Key Features:

  • Valve type: Piston spring check valve with inline piston design
  • Body material: Brass
  • Check mechanism: Brass piston with stainless steel spring
  • Connection size and type: 1/8 in FNPT x FNPT, female x female
  • Media compatibility: Air and fluid media
  • Cracking pressure: 1 psi
  • Pressure rating: 500 psi maximum operating pressure; 500 psi maximum water pressure
  • Temperature range: -20 degrees F to 180 degrees F
  • Seal material: Buna-N
  • Seat material: Brass
  • Mounting orientation: Horizontal or vertical
  • Flow capacity: Cv 0.6
  • Overall length: 1.38 in
  • Standards: UL, UR
