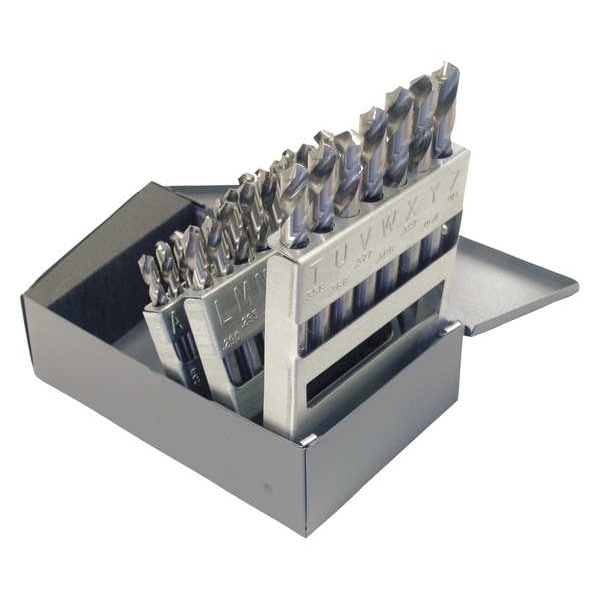

26PC 118 Degree General-Purpose Screw Machine Length Drill Set Cleveland 2120 Bright HSS RHS/RHC A-Z
- Mfr # C01332
- Zoro # G2993687
product price:
$
163.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
0
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C01332
- Zoro #
- G2993687
- UPC #
- 697334013327
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- A to Z
- Drilling Length
- 1.313", 1.375", 1.375", 1.375", 1.375", 1.438", 1.438", 1.500", 1.500", 1.500", 1.500", 1.563", 1.563", 1.625", 1.688", 1.688", 1.688", 1.688", 1.750", 1.750", 1.813", 1.875", 1.875", 1.938", 1.938", 2.000"
- Sizes Included
- A-Z
- Shank Dia.
- A-Z
- Overall Length
- 0
- Shank Size
- 0.2340", 0.2380", 0.2420", 0.2460", 1/4", 0.2570", 0.2610", 0.2660", 0.2720", 0.2770", 0.2810", 0.2900", 0.2950", 0.3020", 0.3160", 0.3230", 0.3320", 0.3390", 0.3480", 0.3580", 0.3680", 0.3770", 0.3860", 0.3970", 0.4040", 0.4130"
- Drill Bit Dimension Type
- Letter
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Smallest Drill Bit Size
- A
- Drill Bit Sizes Included
- A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
- Largest Drill Bit Size
- Z
- Drill Length Class
- Screw-Machine Length
- Diameter
- A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
Description
The CLEVELAND C01332 is a screw machine drill bit set consisting of 26 high-speed steel bits sized from A to Z using the letter measurement system. These drill bits are intended for drilling use in alloy steel, aluminum, brass, carbon steel, cast iron, and copper alloys (within the limits of applicable drilling practices and machine/tool compatibility). The bits have a bright, uncoated finish and employ a spiral flute with helix angles ranging from 21 to 34 degrees, intended for right-hand cutting operations (as applicable to standard chucking and feed direction).
Key Features:
- Material: High Speed Steel, General Purpose grade
- Number of Drill Bits: 26, covering sizes A through Z
- Shank: Straight, with diameters ranging approximately from 0.2340" to 0.4130"
- Drill Lengths: Varying between 1.313" and 2.000" depending on size
- Point Type: Radial with a 118-degree point angle
- Flutes: Two spiral flutes for chip removal
- Drill Classification: Screw-machine length bits
- Compliance: Manufactured in accordance with ASME B94.11M-1993 standards; point angle 118°; spiral flute helix angles 21°–34°; screw-machine length
- Includes a metal drill index case for organized storage
