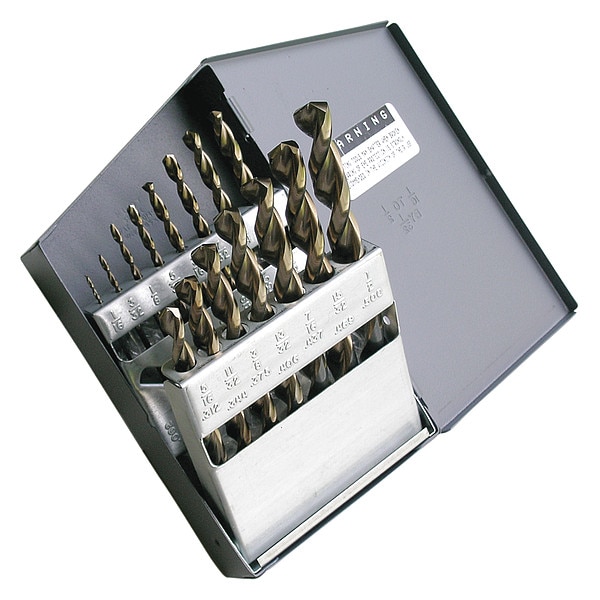

Jobber Drill Set, Parabolic, 15 PC, HSS

  • Mfr # 5UDN7

  • Zoro # G1825722

product price:  $76.29
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UDN7
Zoro #
G1825722
UPC #
-
Country of Origin
United States

Dimensions

Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 32nds
Shank Dia.
1/6 in
Depth x Dia. Ratio
4xD
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/2 in
Smallest Drill Bit Size
1/16 in
Depth:Dia. Ratio
4xD
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
Split Point
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Measurement System
Fractional Inch
Material - Machining
High Speed Steel
Aircraft Drill
No
Finish - Machining
Black and Gold
Shank Type - Machining
Straight
Drill Bit Point Type
Split Point
Material Grade - Machining
Heavy Duty
Primary Material Application
Aluminum, Cast Iron, Steel
Number of Drill Bits
15
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Drill Bit Case Type
Metal Index
Number of Flutes
2
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, N, P
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

The ZORO SELECT - 5UDN7 is a set of 15 jobber-length drill bits made from heavy-duty high speed steel, suitable for machining applications on materials such as aluminum, cast iron, and steel. These fractional inch drill bits range in size from 1/16 inch to 1/2 inch and feature a split point tip (135-degree point angle) to aid in precise drilling. The set includes a metal index case for storage and size organization. Have a straight shank and right-hand spiral flutes for drilling operations across a range of common diameters.

Key Features:

  • Drill bit sizes included: 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
  • Overall lengths vary from 1 7/8" to 6" depending on bit size
  • Two-flute spiral design with right-hand helix direction
  • Split point tip with a 135-degree point angle for reduced walking
  • Constructed from high speed steel (HSS)
  • Jobber length class (overall length varies by bit size)
  • Fractional inch measurement system
  • Comes with a metal drill index for storage and size organization
  • Shank diameter: 1/6 inch; straight shank type
  • Not rated for aircraft use
