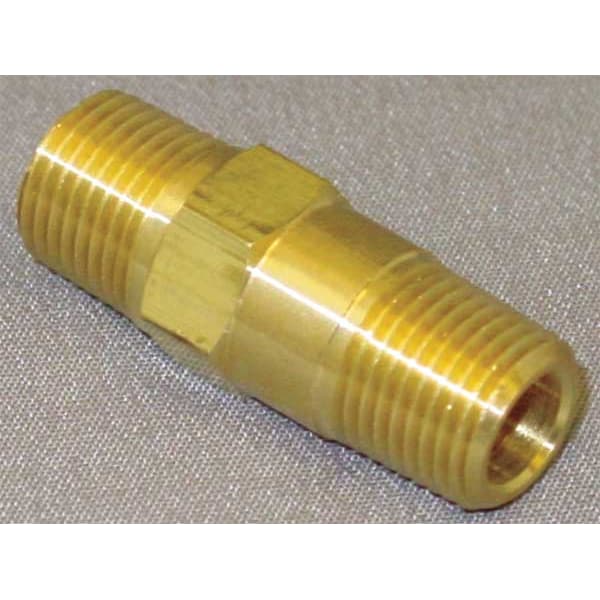

1/8" MNPT Brass Piston Spring Check Valve

  • Mfr # CHK BRS 210-2M2M-B

  • Zoro # G0882971

product price:
$
24.29
/ea

Key Features

Pipe Size
1/8"
Hex Size
7/16 in
Connection Type
MNPT
Connection
MPT
Body Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK BRS 210-2M2M-B
Zoro #
G0882971
UPC #
-
Country of Origin
Mexico

Dimensions

Pipe Size
1/8"
Hex Size
7/16 in
Size
1/8"
Pipe or Tube Size - Check Valves
1/8"
Width
0.44"
Overall Height
7/16"
Length
1.19"
Overall Length
1.19 in
Pipe or Tube Size
1/8 in
Height - Cap to Inlet Center
8 15/16 in
Connection Size - Side 2
1/8 in
Connection Size - Side 1
1/8 in
Nominal Valve Size
1/8 in
Wire Rope Length
1.19 in

Details

Connection Type
MNPT
Connection
MPT
Body Material
Brass
Max. Temp.
250 Degrees F
Seat Material - Check Valves
Brass
Material of Construction
Brass
Seal Material - Check Valves
Buna-N
Seat Material
Brass
Body Material - Valves
Brass
Connection Type - Check Valves
MNPT x MNPT
Cracking Pressure
1 psi
Item
Piston Spring Check Valve
Max. Water Pressure
500 psi
Mechanism and Body Design
Inline Piston
Max. Steam Pressure - Valves
Not Rated
Mounting Position
Vertical or Horizontal
Full Flow - Valves
Yes
Max. Pressure
500 psi
Cracking Pressure - Check Valves
1.000 psi
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Water Pressure - Valves
500 psi
Spring Material - Check Valves
Stainless Steel
Flow Design
Single
Max. Temp. - Valves
180 Degrees F
Sub-Category
Brass
Min. Temp. - Valves
-20 Degrees F
Cap to Inlet Center
8-15/16"
Seal Material
Buna-N
Application - Valves
General Purpose
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Buna
Type
Piston Design
3-A Standard Compliance
Not Rated
Connection Type - Side 2
NPT
Connection Type - Side 1
NPT
Vacuum Service Rating
Not Rated
For Media
Air, Fluids
Check Mechanism Material
Brass
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Operating
500 psi
Connection Gender - Side 1
Male
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
Check Mechanism
Piston
Coefficient of Volume (Cv)
0.2
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 2
Male
Silent Check
Standard
Valve Series
210

Description

Zoro Select piston spring check valve with an inline brass body and piston check mechanism. It is configured with a piston spring check mechanism for one-direction flow and backflow control applications. This valve features 1/8 in male NPT x male NPT connections, a 1 psi cracking pressure, and a single full-flow design. It is intended for air and fluid piping systems within the listed pressure and temperature ratings.

Key Features:

  • Valve type: Piston spring check valve with inline piston mechanism and inline body style
  • Materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
  • Connections: 1/8 in male NPT x male NPT
  • Pressure rating: 500 psi maximum operating pressure; 500 psi maximum water pressure
  • Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature
  • Cracking pressure: 1 psi
  • Flow design: Single, full flow
  • Mounting orientation: Horizontal or vertical
  • Dimensions: 1.19 in overall length, 7/16 in overall height, 7/16 in hex size
  • Standards: UL, UR
