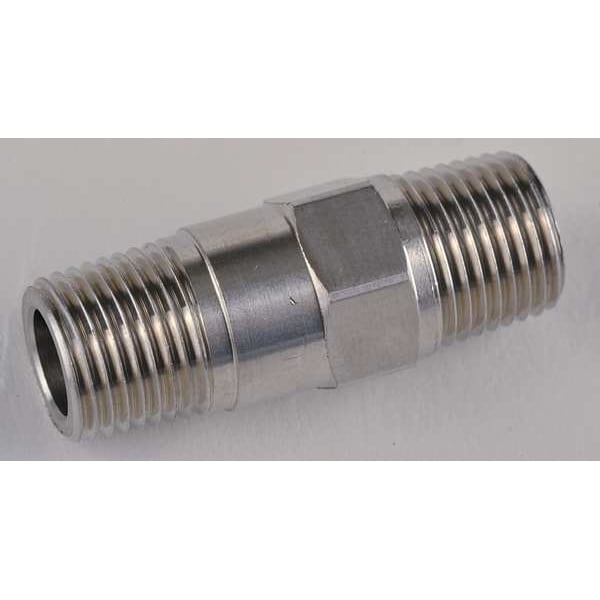

1/8" MNPT Stainless Steel Piston Spring Check Valve

  • Mfr # CHK SST 210-2M2M-F
  • Zoro # G2827946
product price:
$
31.79
/ea

Key Features

Pipe Size
1/8"
Hex Size
7/16 in
Connection Type
MNPT
Connection
MPT
Body Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHK SST 210-2M2M-F
Zoro #
G2827946
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/8"
Hex Size
7/16 in
Pipe or Tube Size - Check Valves
1/8 in
Size
1/8"
Width
7/16 in
Overall Height
7/16 in
Length
1 3/16 in
Overall Length
1.19 in
Pipe or Tube Size
1/8 in
Connection Size - Side 2
1/8 in
Nominal Valve Size
1/8 in
Connection Size - Side 1
1/8 in
Height - Cap to Inlet Center
3 9/16 in
Wire Rope Length
1.19 in

Details

Connection Type
MNPT
Connection
MPT
Body Material
Stainless Steel
Material of Construction
stainless steel
Connection Type - Check Valves
MNPT x MNPT
Mounting Position
Vertical or Horizontal
Item - Check Valves
Check Valve
Seat Material - Check Valves
Stainless Steel
Max. Steam Pressure - Valves
Not Rated
Seal Material
FKM
Flow Design
Single
Item
Piston Spring Check Valve
Application - Valves
General Purpose
Seal Material - Check Valves
Viton
Mechanism and Body Design
Inline Piston
Spring Material - Check Valves
Stainless Steel
Max. Temp. - Valves
180 Degrees F
Sub-Category
Stainless Steel
Full Flow - Valves
Yes
Cracking Pressure
1 psi
Min. Temp. - Valves
-20 Degrees F
Max. Water Pressure - Valves
500 psi
Seat Material
Stainless Steel
Max. Water Pressure
500 psi
Max. Pressure
500 psi
Cracking Pressure - Check Valves
1.0 psi
Body Material - Valves
Stainless Steel
Max. Temp.
180 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Cap to Inlet Center
3 9/16 in
Standards
UL, UR
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Type
Piston Design
For Media
Air, Fluids
Operating Temperature - Minimum
-20 Degrees F
Maximum Pressure - Steam
Not Rated
Coefficient of Volume (Cv)
0.2
Connection Gender - Side 2
Male
Silent Check
Standard
Check Mechanism
Piston
Connection Gender - Side 1
Male
Operating Temperature - Maximum
180 Degrees F
Maximum Pressure - Operating
500 psi
Connection Type - Side 1
NPT
Valve Body Style
Inline
Connection Type - Side 2
NPT
3-A Standard Compliance
Not Rated
Vacuum Service Rating
Not Rated
Check Mechanism Material
Stainless Steel
Valve Series
210

Description

Zoro Select 210 Series piston spring check valve is an inline, single-flow valve configured for one-way flow applications with spring-assisted closure. It has a stainless steel body with a piston check mechanism and is rated for use with air and fluids. This 1/8 in valve has male NPT connections on both ends, a 1 psi cracking pressure, and a 1.19 in overall length.

Key Features:

  • Inline piston spring check valve for one-way flow control
  • Stainless steel body, seat, spring, and check mechanism
  • 1/8 in male NPT x male NPT connections
  • For media: air, fluids
  • Cracking pressure: 1 psi
  • Maximum operating pressure: 500 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Seal material: Viton/FKM
  • Mounting orientation: horizontal or vertical
  • Cv: 0.2
  • Overall length: 1.19 in
  • Standards: UL, UR
