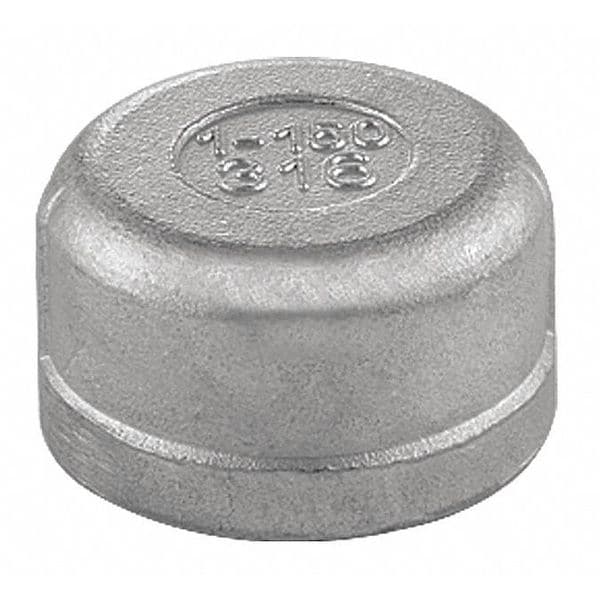

2" FNPT 316 SS Threaded Cap
Mfr # 60RDC111N020
Zoro # G0851593
Key Features
Specifications
Product Information
Dimensions
Description
The ZORO SELECT - 60RDC111N020 is a stainless steel pipe cap that terminates the pipe end and provides a seal to prevent leakage. It features a female national pipe thread (FNPT) connection for removable installation. Constructed from 316L stainless steel, this fitting is rated for Class 150 pressure and is compatible with 2-inch nominal pipe size and Schedule 40 pipe. The fitting supports a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi within a temperature range of -20 to 350 degrees Fahrenheit. It complies with ANSI B1.20.1 standards for threading and pressure class. Key Features:
- Material Grade: 316L stainless steel
- Fitting Shape: Cap to seal pipe ends
- Connection Type: Female National Pipe Thread (FNPT), size 2 inches
- Pressure Rating: Class 150, maximum operating pressure 300 psi
- Temperature Range: -20° to 350° F
- Pipe Schedule Compatibility: Schedule 40
- Maximum Steam Pressure: 150 psi
- Outside Diameter: 2 inches
- Overall Length: 37.6 mm
- Does not include pre-applied thread sealant or sealing components
