  11. 2" FNPT Chrome Brass Ball Valve Inline
Zoro Select 2" FNPT Chrome Brass Ball Valve Inline 107-828-CL - main

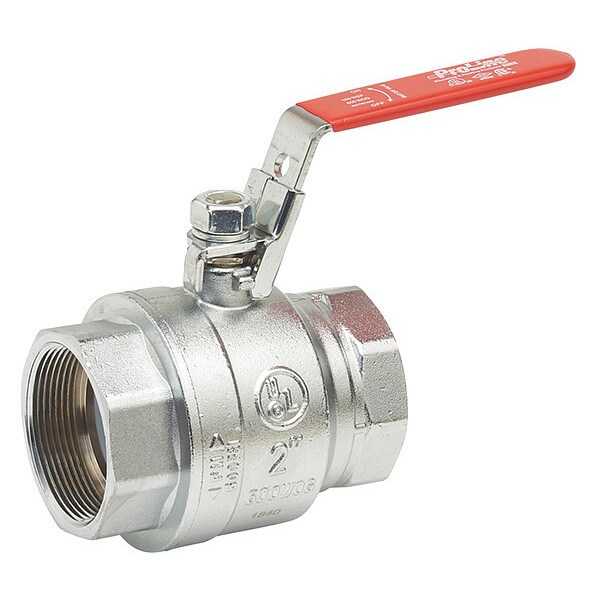

2" FNPT Chrome Brass Ball Valve Inline

  • Mfr # 107-828-CL

  • Zoro # G1920082

product price: $65.19
/ea

Key Features

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
107-828-CL
Zoro #
G1920082
UPC #
-
Country of Origin
China

Dimensions

Pipe Size
2 in
Overall Length
7.8 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in
Nominal Valve Size
2 in

Details

Ball Material
304 Stainless Steel
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Combustible Gases, Steam, Water
Connection Type
FNPT x FNPT
Item
Ball Valve
Temp. Range
-20 Degrees to 300 Degrees F
Handle Material
Chrome Plated Steel with Vinyl Grip
Stem Type
Blowout Proof
Body Material
Brass
Stem Material
Brass
Ball Valve Product Group
Manual
Max. Pressure
900 PSI CWP
Hose I.D.
2 in
Handle Type
Lever
Seat Material
PTFE
Standards
ANSI Z21.15/CSA 9.1, ASME B16.33, ASME B16.44, FM 1140, MHKZ, YQNZ, YRBX, YRPV, YSDT
Seal Material
PTFE
Type
Two Piece
Coefficient of Volume (Cv)
144.194
Vacuum Service Rating
-29.92 in Hg
Operating Temperature - Minimum
-20 Degrees F
Color - Valve Handle
Red
Connection Gender - Side 1
Female
Vented Ball Valve
Non-Vented
Connection Type - Side 1
IPS
3-A Standard Compliance
Not Rated
Operating Temperature - Maximum
300 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 2
Female
Maximum Pressure - Steam
600 PSI CWP
Handle - Locking
Locking
Connection Type - Side 2
IPS
Valve Series
7700LHC-NP

Description

Manual Two-Way Ball Valve, Body Material Chrome-Plated Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material 304 Stainless Steel, Ball Port Style Full Port

Restrictions

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
