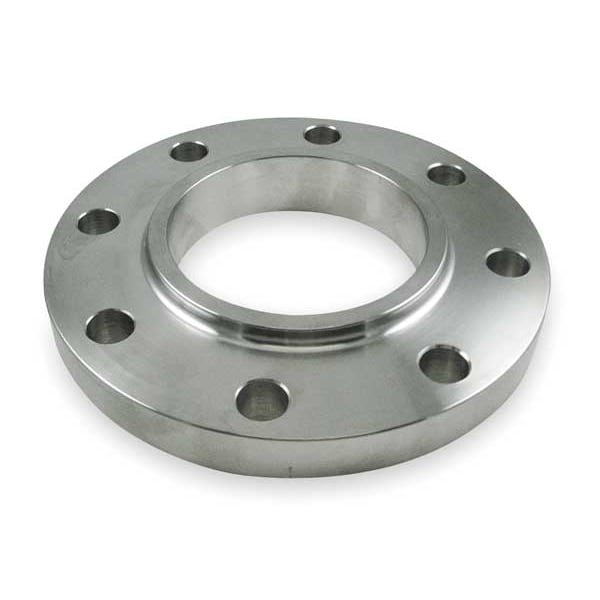

2" FNPT SS Threaded Flange

original price: $101.01
3% off
new price: $97.29
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Specific Fitting Shape Flange
  • Pipe Fitting Material Forged 304 Stainless Steel
  • Fitting Connection Type FNPT
  • Fitting Schedule/Class Class 300
  • Basic Pipe Fitting Shape Flange
See all product information

Product Information

Dimensions

Pipe Size - Pipe Fitting 2"
Pipe Size 2"
Pipe Size (Fittings) 2"
Outside Dia. 6-1/2"
Bolt Hole Diameter 3/4 in
Overall Length 1 5/16 in
Flange Outside Diameter 6 1/2 in
Bolt Circle Diameter 5 in
Nominal Pipe Size 2 in

Details

Specific Fitting Shape Flange
Pipe Fitting Material Forged 304 Stainless Steel
Fitting Connection Type FNPT
Fitting Schedule/Class Class 300
Basic Pipe Fitting Shape Flange
Basic Pipe Fitting Material Metal
Item Threaded Flange
Max. Steam Pressure 300 psi
Pipe Fitting Connection Type FNPT
Fittings Sub-Category Flanges
Pipe Fitting Schedule/Class Class 300
Max. Pressure 720 psi
Standards ASTM-SA182, ANSI B16.5, ASME B1.20.1
Number of Holes 8
Specific Pipe Fitting Shape Flange
Connection Surface Raised Face
Maximum Operating Pressure 720 psi
Class Class 300
Number of Bolt Holes 8
Material Grade 304/304L
Flange Thickness 7/8 in
Type Forged

Description

Threaded Flange, Raised Face, 2 in Nominal Pipe Size, Flanged x FNPT, 6 1/2 in Flange Outside Diameter, 7/8 in Flange Thickness, 1 5/16 in Overall Length, Stainless Steel, 304/304L, Class Class 300, 720 psi Maximum Operating Pressure, 300 psi Max. Steam Pressure, Number of Bolt Holes 8, 5 in Bolt Circle Diameter, 3/4 in Bolt Hole Diameter
