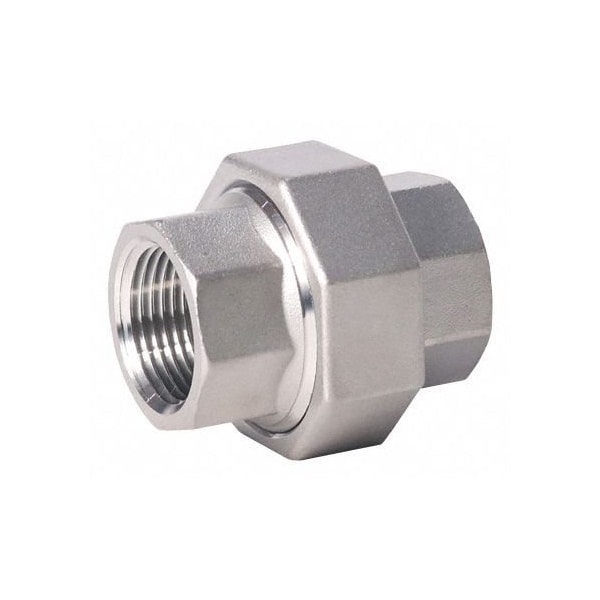

304 Stainless Steel Union, 3/4 in x 3/4 in Fitting Pipe Size, Female NPT x Female NPT, Class 150

  • Mfr # 400U111N034

  • Zoro # G3373167

product price:
$
11.89
/ea

Key Features

Pipe Size - Pipe Fitting
3/4"
Specific Fitting Shape
Union
Pipe Fitting Material
304 Stainless Steel
Fitting Connection Type
FNPT
Fitting Schedule/Class
Class 150
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
400U111N034
Zoro #
G3373167
UPC #
-
Country of Origin
Multiple

Dimensions

Pipe Size - Pipe Fitting
3/4"
Pipe Size (Fittings)
3/4"
Hex Size
46.5 mm
Pipe Size
3/4"
Fitting Side B Outside Diameter
3/4 in
Fitting Side A Outside Diameter
3/4 in
Overall Length
1 33/64 in
Fitting Side B Nominal Pipe Size
3/4 in
Fitting Side A Nominal Pipe Size
3/4 in
Fitting Thread Size A
3/4"-14
Wire Rope Length
1 33/64 in
Length
1 33/64 in

Details

Specific Fitting Shape
Union
Pipe Fitting Material
304 Stainless Steel
Fitting Connection Type
FNPT
Fitting Schedule/Class
Class 150
Basic Pipe Fitting Shape
Union
Basic Pipe Fitting Material
Metal
Item
Union
Max. Steam Pressure
150 psi
Standards
ASME B1.20.1, ASTM A351
Pipe Fitting Schedule/Class
Class 150
Specific Pipe Fitting Shape
Union
Max. Pressure
300 psi
Fittings Sub-Category
Unions
Application
Air, Gases, Non-Potable Water, Oils, Potable Water
Fitting Side A Type
Threaded
Maximum Operating Pressure
300 psi
For Pipe Schedule
Schedule 40
Fitting Side A Gender
Female
Fitting Side B Type
Threaded
Color
Silver
Low Lead Compliance Level
Compliant
Fitting Side A Pipe Threading
14
Includes Pre-Applied Thread Sealant
No
Includes Seal
No
Material Grade
304
Fitting Side B Pipe Threading
14
Class
Class 150
Fitting Side B Gender
Female
Side A Thread Type
NPT
Gravity Flow
Pressure
Finish/Coating
None

Description

The ZORO SELECT - 400U111N034 is a 3/4-inch stainless steel pipe union that connects two pipe ends without rotation. Constructed from 304 stainless steel, it features female NPT threaded connections on both ends and complies with Class 150 pressure ratings, supporting a maximum operating pressure of 300 psi. This union can be used with air, natural gas, non-potable water, oil, potable water, and steam, rated for Class 150 pressure. The fitting conforms to ASTM-A-351 material standards, ASME B1.20.1 thread standards, and meets MSS-SP-114 Class 150 pressure requirements. It is compliant with applicable low-lead regulations for potable water systems. Key Features:

  • Material: 304 Stainless Steel meeting ASTM-A-351 standards
  • Connection Type: Female NPT threaded ends on both sides
  • Nominal Pipe Size: 3/4 inch with 14 threads per inch
  • Pressure Rating: Class 150 with a maximum operating pressure of 300 psi
  • Media compatibility: suitable for use with air, natural gas, non-potable water, oil, potable water, and steam; rated for Class 150 pressure
  • Hex Size: 46.5 mm wrenching surface
  • Overall Length: 38.5 mm
  • Does not include pre-applied thread sealant or seals
  • Color: Silver finish
  • Meets MSS-SP-114 and ASME B1.20.1 thread standards
