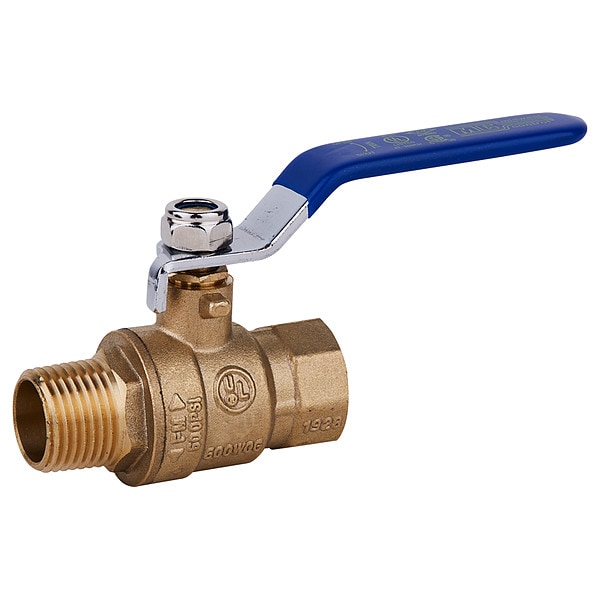

3/4" FNPT x MNPT Brass Ball Valve Inline

product price: $17.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Brass
  • Body Style Inline
  • Handle Material Chrome-Plated Carbon Steel
  • Ball Valve Basic Body Material Brass
  • Valve Structure 2-Piece
See all product information

Product Information

Dimensions

Pipe Size 3/4 in
Overall Length 4.16 in
Connection Size - Side 1 3/4 in
Nominal Valve Size 3/4 in
Connection Size - Side 2 3/4 in

Details

Body Material Brass
Body Style Inline
Handle Material Chrome-Plated Carbon Steel
Ball Valve Basic Body Material Brass
Valve Structure 2-Piece
Max. Steam Pressure 150 psi WSP
Port Full
Ball Valve Product Group Manual
Seat Material PTFE
Temp. Range 0 Degrees to 350 Degrees F
Handle Type Lever
Stem Material Brass
Ball Material Chrome-Plated Brass
Stem Type Blowout Resistant
Item Manual Two-Way Ball Valve
Connection Type FNPT x MNPT
Body Seal Material PTFE
Standards ANSI B1.20.3
Max. Pressure 600 psi CWP
Seal Material PTFE
Connection MNPT x FNPT
Sub-Category Brass Ball Valves
Material of Construction Brass
Valve Ways 2-Way
Maximum Pressure - Operating 600 psi
Ball Port Style Full Port
Connection Gender - Side 1 Male
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
Operating Temperature - Maximum 350 Degrees F
Connection Gender - Side 2 Female
Valve Construction Two-Piece
Valve Body Style Straight
3-A Standard Compliance Not Rated
For Media Air, Steam, Water
Coefficient of Volume (Cv) 29.76
Vacuum Service Rating 29 in Hg
Color - Valve Handle Blue
Vented Ball Valve Non-Vented
Operating Temperature - Minimum 0 Degrees F
Connection Type - Side 2 NPT
Maximum Pressure - Steam 150 psi
Connection Type - Side 1 NPT

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking
