  11. 3/4" Sweat Brass Ball Valve Inline
Shop All Ball Valves
No Product Image Available
Zoro Select

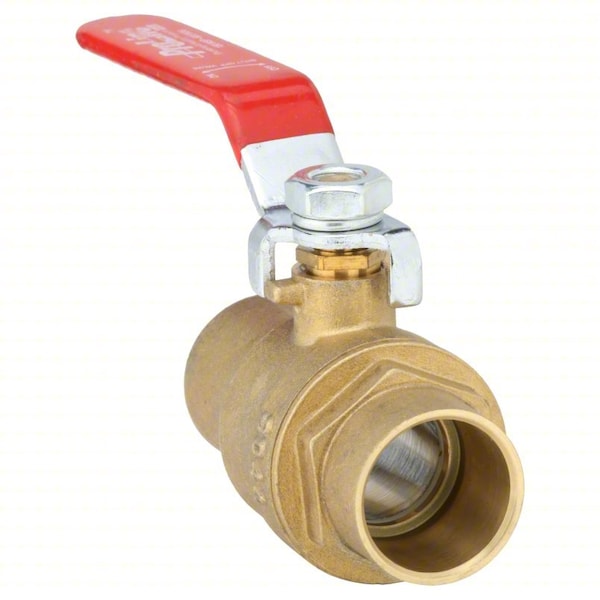

3/4" Sweat Brass Ball Valve Inline

original price: $9.89
5% off
new price: $9.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 3/4"
  • Body Material Brass
  • Body Style Inline
  • Tube Size 3/4 in
  • Stem Type 1-Piece Stem
See all product information

Product Information

Dimensions

Pipe Size 3/4"
Tube Size 3/4 in
Overall Length 4.79 in
Connection Size - Side 2 3/4 in
Nominal Valve Size 3/4 in
Connection Size - Side 1 3/4 in

Details

Body Material Brass
Body Style Inline
Stem Type 1-Piece Stem
Seat Material PTFE
Body Seal Material PTFE
Max. Pressure 600 psi CWP
Standards ASTM
Ball Valve Basic Body Material Brass
Connection Type Sweat x Sweat
Max. Steam Pressure 150 psi WSP
Handle Type Lever
Ball Material Chrome Plated Brass
Ball Valve Product Group Manual
Port Full
Temp. Range 0 Degrees to 356 Degrees F
Item Ball Valve
Stem Material brass
Handle Material Steel
Valve Structure 2-Piece
Seal Material PTFE
Type Two Piece
Connection Solder
Material of Construction Brass
Sub-Category Brass Ball Valves
Operating Temperature - Minimum -20 Degrees F
Maximum Pressure - Operating 600 psi
Maximum Pressure - Steam 600 psi
Valve Ways 2-Way
For Media Combustible Gases, Steam, Water
Valve Body Style Straight
Color - Valve Handle Red
Connection Type - Side 1 Sweat
Operating Temperature - Maximum 300 Degrees F
Valve Construction Two-Piece
Vacuum Service Rating -29.92 in Hg
Vented Ball Valve Non-Vented
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Non-Locking
Connection Type - Side 2 Sweat
Coefficient of Volume (Cv) 21.417
Manufacturer Warranty 1 yr
Ball Port Style Full Port

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 600 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
