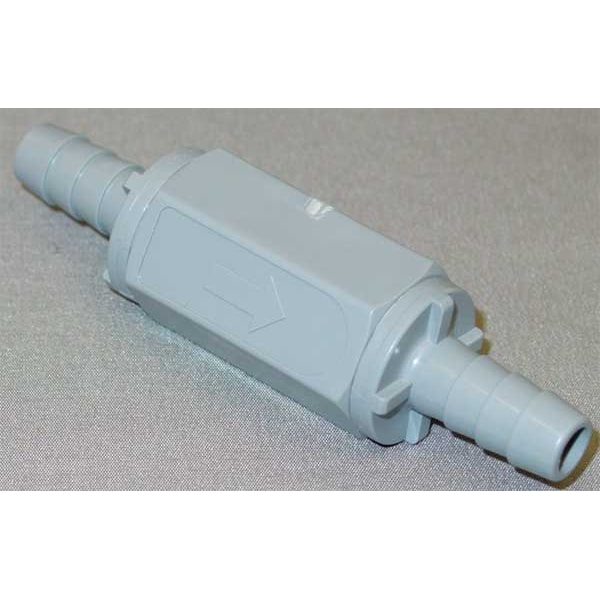

3/8" Barb Gray PVC Ball Cone Spring Check Valve

  • Mfr # PVC CHK 426-6B6B-B

  • Zoro # G3024366

product price:
$
19.29
/ea

Key Features

Pipe Size
3/8"
Hex Size
1 in
Connection Type
Barb x Barb
Connection
Barb
Body Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PVC CHK 426-6B6B-B
Zoro #
G3024366
UPC #
-
Country of Origin
Germany
Connection Type
Barb x Barb
Connection
Barb
Body Material
PVC
Connection Type - Check Valves
Barb x Barb
Spring Material
Hastelloy
Material of Construction
PVC
Seal Material
Buna-N
Max. Temp.
140 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Pressure
125 psi
Application - Valves
General Purpose
Max. Steam Pressure - Valves
Not Rated
Spring Material - Check Valves
Stainless Steel
Max. Water Pressure
125 psi
Item - Check Valves
Check Valve
Cracking Pressure - Check Valves
1.0 psi
Mounting Position
Vertical or Horizontal
Min. Temp. - Valves
-20 Degrees F
Seat Material
PVC
Body Material - Valves
PVC
Seat Material - Check Valves
PVC
Full Flow - Valves
Yes
Flow Design
Single
Seal Material - Check Valves
Buna-N
Max. Temp. - Valves
140 Degrees F
Cracking Pressure
1 psi
Item
Ball Cone Spring Check Valve
Max. Water Pressure - Valves
125 psi
Sub-Category
PVC
Mechanism and Body Design
Inline Ball Cone
Standards
NSF 42
Mounting Orientation
Horizontal, Vertical
Seal
Buna
For Media
Chemicals
Silent Check
Standard
Valve Body Style
Inline
3-A Standard Compliance
Not Rated
Check Mechanism Material
Stainless Steel
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Operating
125 psi
Connection Type - Side 2
Barb
Vacuum Service Rating
Not Rated
Check Mechanism
Ball
Connection Type - Side 1
Barb
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Type
Ball Cone Design
Valve Series
426

Description

Zoro Select 426 series ball cone spring check valve with an inline PVC body and 3/8 in barb x barb connections. This valve uses a spring-loaded ball mechanism and is configured for one-way flow and reverse-flow restriction in liquid handling applications compatible with the listed materials and operating ranges. Its full-flow design, 1 psi cracking pressure, and horizontal or vertical mounting options mount horizontally or vertically in inline installations.

Key Features:

  • Valve type: Ball cone spring check valve with inline body design
  • Body material: PVC
  • Check mechanism: Ball with stainless steel mechanism material
  • Connection size: 3/8 in x 3/8 in
  • Connection type: Barb x Barb
  • Cracking pressure: 1 psi
  • Flow design: Single, full flow
  • Seal material: Buna-N
  • Seat material: PVC
  • Spring material: Hastelloy
  • Maximum operating pressure: 125 psi
  • Operating temperature range: -20 degrees F to 140 degrees F
  • Mounting orientation: Horizontal or vertical
  • Standards: NSF 42
  • Overall dimensions: 3.53 in L x 1 in H x 1 in W
