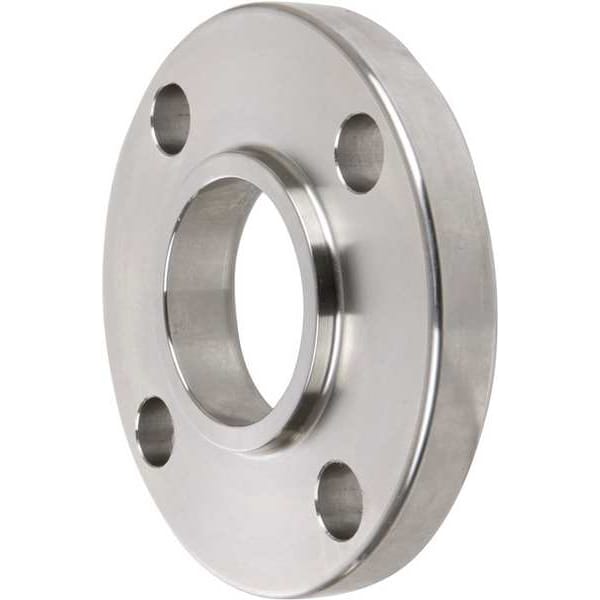

4" Welded SS Slip-On Flange
Mfr # 4381000480
Zoro # G2851152
Key Features
Specifications
Product Information
Dimensions
Description
The ZORO SELECT - 4381000480 is a 4-inch slip-on flange made from 304 stainless steel designed for use in stainless steel piping systems. This flange features a raised face connection surface and is secured by fillet welds on both the inside and outside of the pipe. Rated for Class 150 pressure, it supports a maximum operating pressure of 150 psi and is intended for use within Class 150 pressure rating (maximum 150 psi). The product complies with ANSI B16.5 and ASTM A182 standards and has a temperature range of -60 Degrees to 450 Degrees F. Key Features:
- Material: 304 Stainless Steel
- Nominal Pipe Size: 4 in
- Flange Outside Diameter: 9 in
- Connection Type: Welded
- Number of Bolt Holes: 8
- Connection Surface: Raised Face
- Pressure Class: Class 150 (Max. Pressure: 150 psi)
- Temperature Range: -60 Degrees to 450 Degrees F
- Standards: ANSI B16.5; ASTM A182
