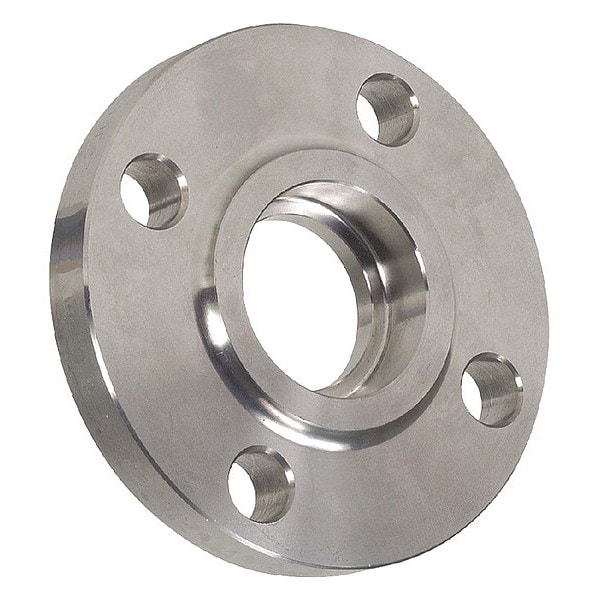

6" Welded SS Socket Weld Flange

The ZORO SELECT - FLS61RFSW600 is a socket weld flange made from 316 stainless steel, designed for small-diameter, high-pressure piping systems. It features a Class 150 pressure rating with a maximum operating pressure of 150 psi. The flange has a raised face connection surface, an outside diameter of 11 inches, and a flange outside diameter of 11 inches. It is intended for use with air, natural gas, non-potable water, propane, and steam within specified parameters. Its design facilitates pressure-tight connections via socket welds with secured pipe ends and fillet welds.

Key Features:

• Made from 316 stainless steel material grade for corrosion resistance and durability.
• Designed as a socket weld flange with a recessed socket for accepting pipe ends.
• Pressure rating: Class 150; maximum allowable pressure: 150 psi under specified conditions.
• Intended for use with air, natural gas, non-potable water, propane, and steam within specified parameters.
• Flange outside diameter: 11 inches; overall outside diameter: 11 inches.
• Connection surface type: Raised Face.
• Connection type: Welded.
• Nominal pipe size: 6 inches; pipe fitting size: 6 inches.
• Number of bolt holes: 8; total holes: 8.
• Standards include ANSI B16.5 and ASTM A182.
• Suitable for use within -60°F to 450°F as per ASTM and ANSI standards.
