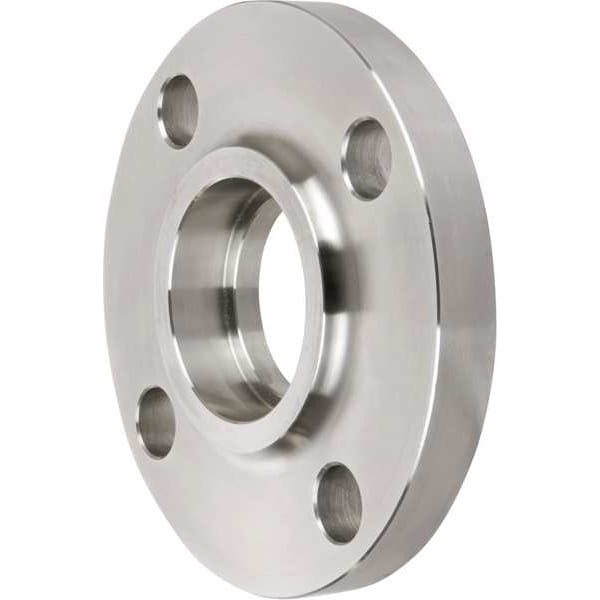

6" Welded SS Socket Weld Flange

This product is a Class 150 stainless steel socket weld flange crafted from 304 stainless steel. It features a raised face connection surface and an outside diameter of 11 inches. Designed for small-diameter, high-pressure piping systems, it is rated for pressure applications up to 150 psi and a maximum operating pressure of 150 psi. The flange includes eight bolt holes around its perimeter and is intended for welded connections on 6-inch nominal pipe sizes. It is manufactured in accordance with ANSI B16.5 and ASTM A182 standards. Suitable for applications requiring a pressure-tight, high-strength connection with good alignment and a smooth bore, although it is limited in size and disassembly may be less convenient.

Key Features:

• Made of 304 stainless steel for corrosion resistance and durability.
• Class 150 rating indicating suitability for high-pressure applications up to 150 psi.
• Raised face connection surface for sealing contact with gaskets or mating surfaces.
• Outside diameter of 11 inches, compatible with 6-inch nominal pipes.
• Eight bolt holes for secure attachment to compatible flanges.
• Welded connection type intended for use in small-diameter, high-pressure piping systems.
• Manufactured in accordance with ANSI B16.5 and ASTM A182 standards.
• Rated for operation within the specified temperature range of -60°F to 450°F.
