  5. Altitude Pressure Gauge, 0 to 460 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

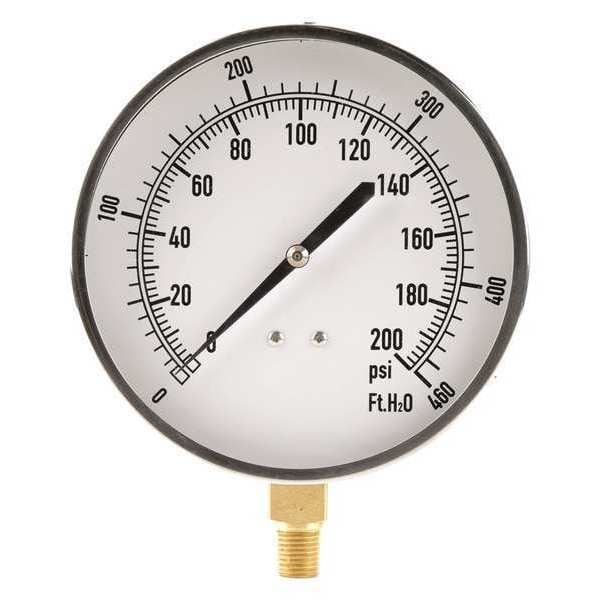

Zoro Select Altitude Pressure Gauge, 0 to 460 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C813 - main

Altitude Pressure Gauge, 0 to 460 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C813

  • Zoro # G4739707

product price:  $26.89
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18C813
Zoro #
G4739707
UPC #
190735393963
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Altitude Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Non-Corrosive, Non-Explosive Gas
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Glass
Primary Pressure Range
0 to 460
Primary Scale Units
ft wc
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Smallest Graduation
2 psi
Gauge Primary Range Smallest Graduation
2
Gauge Secondary Range Values
0 to 460
Calibration Certificate Included
No
Gauge Application
Altitude
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Case Color
Silver
Socket Material
Copper
Case Material
Stainless Steel
Connection Type
MNPT
Wetted Materials
Copper
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Secondary Pressure Range
0 to 200
Dial Color
White
Process Connection Gender
Male
Accuracy Scale
Full Scale
Scale Type
Dual
Removable Bezel
No
Adjustable Pointer
No
Reads Head Pressure
No
Secondary Scale Units
psi
Sensor Material
Copper
Pressure Gauge Type
Altitude Gauge
Process Temperature Range
-40 Degrees to 140 Degrees F
Freeze Resistant Movement
No
Includes Mounting Hardware
No
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 140 Degrees F

Description

Altitude Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Tempered Glass, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Copper, Socket Material Copper, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Altitude Gauge, Process Temperature Range -40 Degrees to 140 Degrees F
