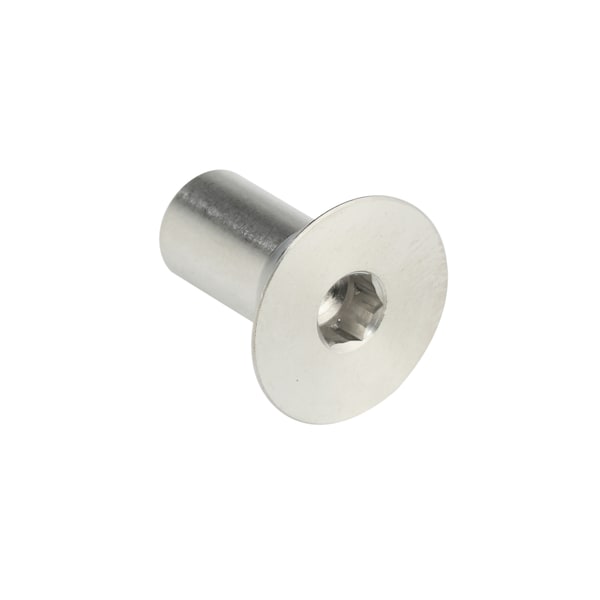

Arch Barrel, 1/4"-20, 3/4 in Brl Lg, 3/8 in Brl Dia, Stainless Steel Plain
Mfr # Z1652
Zoro # G3265376
CAD Available
product price:Â $12.39
/eaKey Features
CAD Drawing
System of Measurement
Inch
Type
Female Binding Barrel
Thread Size
1/4"-20
Material
Stainless Steel
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z1652
Zoro #
G3265376
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1/4"-20
Barrel Length
3/4 in
Barrel Diameter
3/8 in
Barrel Drive Size
7/32 in
Barrel Head Height
15/64 in
Dia./Thread Size
1/4"-20
Barrel Head Dia.
3/4 in
Barrel Dia.
3/8 in
Drive Size
7/32 in
Barrel Thread Depth
3/8 in
Outside Dia.
3/8"
Screw Drive Size
7/32 in
Grip Size
3/4 in
Barrel Head Diameter
3/4 in
Description
Female Binding Barrel, Finish Plain, Material Stainless Steel, Barrel Head Style Flat, Barrel Drive Type Internal Hex, Thread Size 1/4 In.-20, Barrel Length 3/4 in, Barrel Diameter 3/8 in, Barrel Thread Depth 3/8 in, Screw Length Not Applicable, Barrel Drive Size 7/32 in, Barrel Head Diameter 3/4 in, Barrel Head Height 15/64 in, Dimensional Standards AMPG 2000 SB.07, Grip Size 3/4 in, Made in North America Made in North America, Material Grade/Class 18-8, Material Quality Standards ASTM A582
