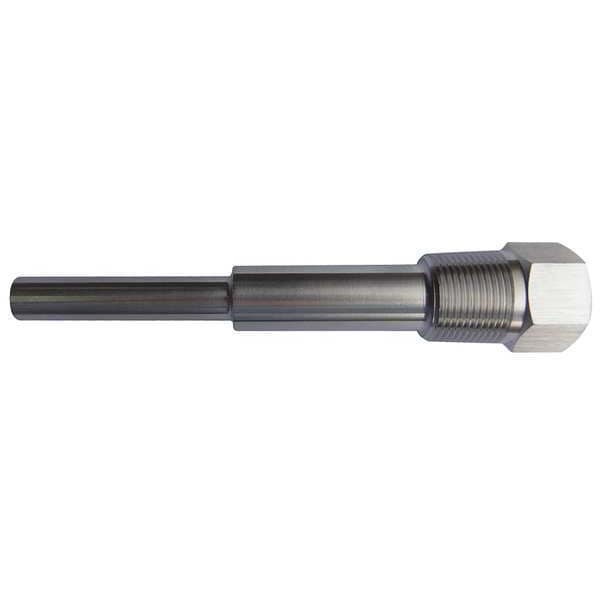

Bimetal Thermowell, 304SS, 1/2 NPSM

Zoro Select Bimetal Thermowell, 304SS, 1/2 NPSM 24C512
Tap to zoom
Hover or click to zoom
$27.83
  • Item: Threaded Thermowell
  • Internal Thread Size: 1/2 NPSM
  • Stem Length: 2.5 in
See full product details
Orders over $75 ship free.

Total: $27.83

Zoro Select #24C512 Specifications

  • Item: Threaded Thermowell
  • Internal Thread Size: 1/2 NPSM
  • Stem Length: 2.5 in
  • Process Connection: 3/4 in MNPT
  • Insertion Length: 2.5 in
  • Material: 304 Stainless Steel
  • Neck Extension: 1.75 in
  • Shank Dia.: 0.44 in
  • Wrench Allowance: 0.4 in
  • Socket Length: 2.9 in
  • Bore Dia.: 0.26 in
  • For Thermometer Thread Size: 1/2 in
  • Includes Cap and Chain: No
  • Application: General Purpose, Sealed Systems
  • Thermowell Type: Threaded
  • For Stem Length: 2 1/2 in
  • Includes Lagging: No
  • For Stem Diameter: 1/4 in
  • NSF Rated: No
  • Thread Gender: Male
  • For Thermometer Thread Connection: 1/2 in NPSM
  • Maximum Operating Pressure: 10,000 psi at 60 Degrees F
  • Thread Type: NPT
  • Food Safe: No
  • For Thermometer Thread Type: NPSM
  • Shank Type: Straight
  • Maximum Operating Temperature: 1,000 Degrees F at 3,130 psi, 200 Degrees F at 6,000 psi, 400 Degrees F at 4,860 psi, 600 Degrees F at 4,140 psi, 70 Degrees F at 6,550 psi, 800 Degrees F at 3,510 psi
  • Thread Size: 3/4 in
  • Thermowell Material: Stainless Steel
  • Country of Origin (subject to change): China

Description

Bimetal Thermowell, Internal Thread Size 1/2 NPSM, Stem Length 2.5 in, Process Connection 3/4 in NPT, Insertion Length 1 3/4 in, Material 304 Stainless Steel, Bore Dia. 0.26 in, Shank Dia. 0.44 in, Socket Length 2.9 in, Wrench Allowance 0.4 in

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
